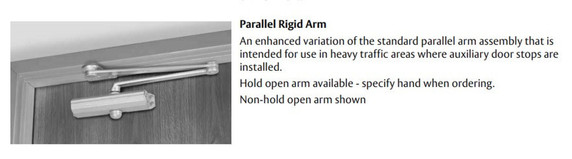

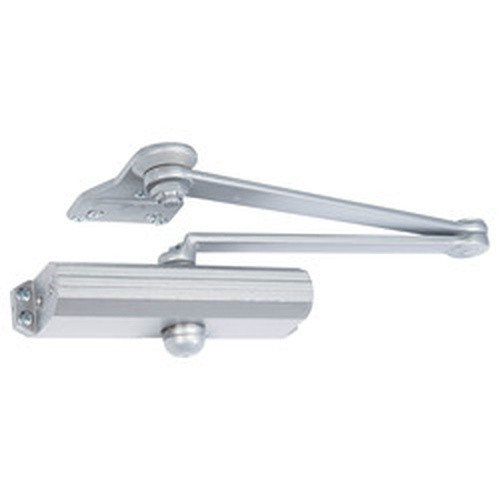

Parallel Rigid Arm
An enhanced variation of the standard parallel arm assembly that is intended for
use in heavy traffic areas where auxiliary door stops are installed.

FEATURES
 Exceeds 25 million cycles
• Non-handed
• Rack-and-pinion design
• Cast aluminum closer body
• 2-7/8" (73mm) projection
• 1-3/8" (35mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Tri-Style® packaging (regular arm, top jamb and parallel arm mounting)
• All standard arm applications allow doors to swing 180°, conditions permitting
• Staked valves
• Standard, separate and independent, latch, sweep and backcheck intensity valves
• 30-year limited warranty

EXPLANATION OF FEATURES

Aluminum Alloy Housing
Closer bodies are constructed of a special aluminum alloy, carefully selected to
accommodate interaction with steel components and operating conditions.

Rack & Pinion Operation
Provides a smooth constant control of the door through its full opening and closing cycle. 180°
door swing can be achieved when door, frame, hardware and arm function do not limit door swing.

Tri-Style®
1600BC/1601 closers come with screws, brackets & soffit plate to allow for regular, top jamb, &
parallel arm installations.

Sweep Speed Control Valve
Allows adjustment of door speed from the door's full open position down to approximately 10° from the closed position.

Latch Speed Control Value
Allows adjustment of door speed from approximately 10° down to the door’s fully closed position.

Hold Open
Achieved by means of friction or ball and detent/roller. Friction hold open has
a range of 90° to 180° using template location and mechanical adjustment. Ball and detent or roller hold open is effective
in a range of 85° to 110°. Hold open arm door closers are not permitted to be used on fire door assemblies.

Adjustable Backcheck Cushion Valve
Provides control of the door in the opening cycle, beginning at approximately 75° of door
opening. It slows/cushions the door opening, when the door is forcibly opened beyond its preadjusted opening speed limits.

Warranty
These closers carry a limited 30-year warranty against defects and a limited lifetime warranty on the aluminum housing.

Closer Fluid
NorGlide® door closer fluid is a specially formulated hydraulic fluid that contains lubricity and
anti oxidation agents that provide optimum performance and efficiency. This fluid complements the interaction of the door

closer's aluminum housing with its steel and zinc components, while maintaining stable viscosity to allow the door closer to

perform in temperatures ranging from extremely high to as low as -40° F.

Multi-Sized Door Closer: 1601
Adjustable through the power range of sizes 1 through 6 to comply with the opening force requirements as outlined in
the Americans with Disabilities Act (A.D.A.) and ANSI A117.1 for interior doors. Outlined in ANSI specification A156.4.

CERTIFICATIONS
• ANSI/BHMA A156.4, Grade 1 certified
• UL / cUL listed for use on fire rated doors
• UL10C listed for positive pressure fire test
• Manufactured in an ISO 9001 and ISO 14001 certified facility
• 1601 door closers are designed to comply with requirements for the Americans with
   Disabilities Act (A.D.A) and ANSI standard A117.1
• UL certification environmental product declaration

Model: Norton PR1601H 689, PR1601H 690, PR1601H 691, PR1601H 693, PR1601H 694
