Norton 9500H Cast Iron Hold Open Door Closer

Norton 9500H Cast Iron Door Closer

ARM OPTIONS

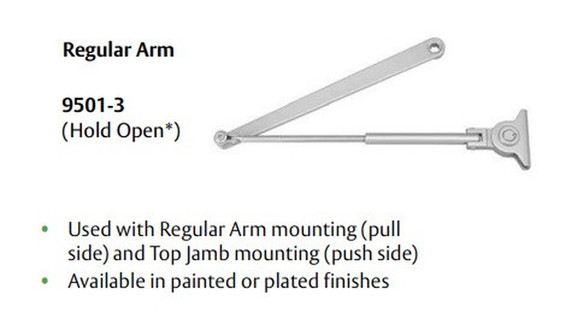

Regular Arm
• Used with Regular Arm mounting (pull side) and Top Jamb mounting (push side)
• Available in painted or plated finishes

Parallel Arm
• Mounted on push side
• Non-hold open arm – combines regular arm with parallel arm mounting bracket
• Hold open arm – combines regular hold open arm with parallel arm mounting bracket
• Available in painted or plated finishes

FEATURES

• Cast iron closer body
• Non-handed
• Rack-and-pinion design
• Standard, separate and independent, latch, sweep and backcheck intensity valves
• Pressure relief valves for both opening and closing cycles protect the door and
   frame from damage and reduces maintenance costs
• Staked valves
• 2-1/4" (57mm) projection
• 1-1/2" (38mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Closer mounting plate for easy installation
• Tri-style® packaging: packed for regular, top jamb or parallel arm mounting
• Adjustable spring sizes 1-6
• Molded ABS plastic cover
• All standard arm applications allow doors to swing 180°, conditions permitting
• Slide Tracks: push or pull side mounting
• 30-year limited warranty
• Exceeds 25 million cycles

Full Plastic Cover

• Completely covers closer body
• Non-handed
• Dimensions: 12" (294) x 4-7/16" (109) x 2-1/4" (55)
• Available in painted finishes only

CERTIFICATIONS

• ANSI/BHMA A156.4, Grade 1 certified
• UL / cUL listed for use on fire rated doors
• UL10C listed for positive pressure fire test
• Comply with requirements for the Americans with Disabilities Act (A.D.A) and ANSI standard A117.1
• This product is manufactured in an ISO 9001, ISO 14001 facility
• UL certified environmental produced declaration
• GreenCircle certified environmental facts

Model: Norton 9500H 689, 9500H 690
