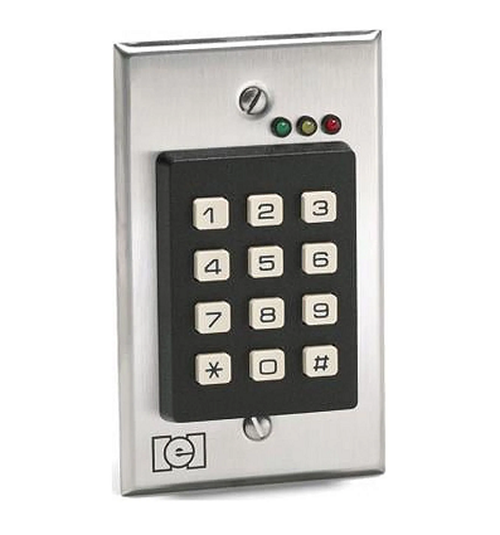

Nortek Control 212I Indoor Flush-Mount Keypad

Nortek Control 212I Indoor Flush-Mount Keypad, 120 Users, Single Gang Design, 1 SPDT 2 amp Relay and three 50mA Negative Voltage Outputs, Indoor Use Only

Affordable single door access control keypad designed to meet the indoor flush mount needs of lighter volume access control environments. There are three LED’s to indicate operation status and provide the user with visual PIN entry confirmation. The i style keypad mounts to most standard single-gang electrical back boxes.

Specifications
Board Dimensions: 1.80"W x 2.845"H x 1.125"D

Voltage: 12-24 Volts AC/DC (No Jumper Required)

Current: 8mA@12VDC typical; 35ma with relay energized.
16mA@24VDC typical; 45ma with relay energized.
21mA@12VAC typical; 74mA with relay energized.
43mA@24VAC typical; 91mA with relay energized.
Note: Keypads using the 293 Relay Board, need an additional 30mA for each relay energized.

Outputs: Main Relay: 5 Amp, Form C @ 24VDC with 10 Amp surge. Outputs 2, 3, and 4 are 50mA negative voltage outputs

Temperature: -20°F TO 130°F (-28°C TO 54°C) Indoor Only

Model: Nortek Control 212I
