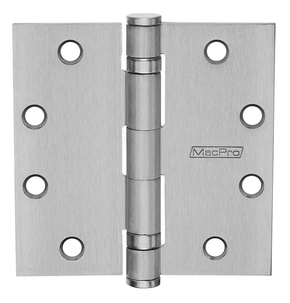

Mckinney MP79 4-1/2X4-1/2 MacPRO Five Knuckle Full Mortise Hinge, Standard Weight, Plain Bearing

Mckinney MP79 4-1/2X4-1/2 MacPro Full Mortise Hinge, 5-Knuckle, Standard Weight, 4-1/2" by 4-1/2", Square Corner, Plain Bearing

The MacPro line offers contractor grade hinges to get the job done right. High quality MacPro hinges are an extraordinary value, ideal when you need large quantities of standard hinges.

• Plain bearing hinges are for standard weight doors only
• MacPro templated hinges are made to conform to ANSI/BHMA 156.1, 156.7

Number of Knuckles: 5

Size: 4-1/2" x 4-1/2" (114.3 mm x 114.3 mm)

Gauge: 0.134

Number of Holes: 8

Fasteners: Machine screws - 1/2 x 12-24; Wood screws - 1-1/4 x 12

Weight: Standard

ANSI Cross Reference: A8133

Base Material: Steel

Model: Mckinney MP79 4-1/2X4-1/2 26D, MP79 4-1/2X4-1/2 P, MP79 4-1/2X4-1/2 26
