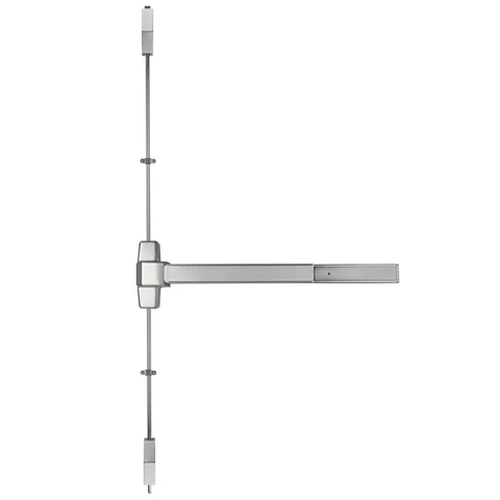

Marks USA M9900VR/32D Surface Vertical Rod Exit Device, Satin Stainless Steel Finish

Marks USA M9900VR/32D Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, Exit Only, 84" Door Height, Hex Dogging, Satin Stainless Steel Finish, Field Reversible

M9900 Exit Devices from Marks USA offer a simple, heavy-duty, easily installed solution where high-quality panic & fire listed hardware is needed. These extremely durable, Grade 1 exit devices are perfect for high impact applications such as schools, universities & other institutional or commercial buildings, and retrofit all popular preps. The heavy-duty cast chassis provides superior durability, while the smooth reduced projection touchbar assembly minimizes catch hazards. To help alleviate the problem of end caps breaking off due to abuse from carts, they have a mitered steel flush mounted Panic Protector End Cap.

Application
• For use on single door or pair of doors
• 1 3/4” (44 mm) door thickness standard.
• RHR or LHR hollow metal, wood and mineral core doors
• Minimum Stile Width: 3 1/2” (89 mm)

Specifications
Device Head Cover: Zinc alloy or stainless steel

Standard Height: 7’ doors

Door Thickness: 1-3/4" (44 mm) door thickness standard

Chassis: Steel, plated

Mechanism Housing: Extruded aluminum

Push Bar Base: Extruded aluminum

Touch Plate: Stainless Steel

End Cap: Stainless Steel

Top Latch: Stainless Steel 37/64” (14.8mm)

Top Strike: Included

Bottom Latch: Stainless Steel 37/64” (14.8mm)

Bottom Strike: Included

Latch Case Covers: Steel, stainless steel or brass

Vertical Rods: Aluminum tube

Hand: Non-handed

Mounting: Machine screws standard. Sex bolts optional. Order “SNB” for wood or unreinforced metal doors

Dogging: Allen-type key furnished

UL listed: ANSI/BHMA Grade 1 Panic Exit Hardware. 3-Hour Fire Rated

Finishes: Satin Stainless US32D, Dark Oxidized Satin Bronze Oil Rubbed 10B

Model: Marks USA M9900VR/32D, M9900VR/32D-48, M9900VR/10B, M9900VR/10B-48
