LCN 7981 Self Contained Control Box/Compressor, Single Door Application

LCN 7981 Self Contained Control Box/Compressor for Single Door Application, Does Not Require a Separate Compressor

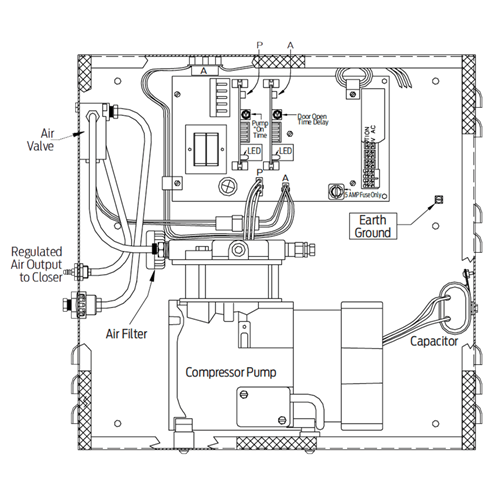

A heavy duty, surface mounted control box contains one or two electrically controlled pneumatic circuits. Air filtration, pneumatic regulation, and system timing is performed by the control box. 7980 Series control boxes also contain a built-in air pump to power the system. Each pneumatic circuit can be adjusted for a hold open time up to 30 seconds. Output air pressure can be adjusted to precisely tailor system to individual door requirements.

Pneumatic connections use standard barbed fittings and 925 tubing from the compressor to the control box to the operator. A package of barbed tee and butt connectors are supplied with each control box to simplify installations.

Dimension: 15" x 15" x 6"

• Self-contained control box/compressor combination for single door leaf applications
• The single pneumatic circuit accepts Normally Open (N.O.) inputs from hardwired or RF (wireless) actuator/receiver combinations
• The 7981 control box does not require a separate compressor

Product Type: Self Contained Control Box/Compressor

Optional “ES” Boxes
• Identical in function(s) to the basic box but includes an isolated (SPDT) relay with 1 set of Normally Open (N.O.) and Normally Closed (N.C.) contracts to control an electric strike
• The LCN control box cannot power the strike. ES7949 has two sets of isolated (DPDT) contacts. Compressor size recommendations are based on normal usage for the number of operations listed
• All LCN supplied auxiliary compressors include an automatic drain feature

Model: LCN 7981, 7981ES
