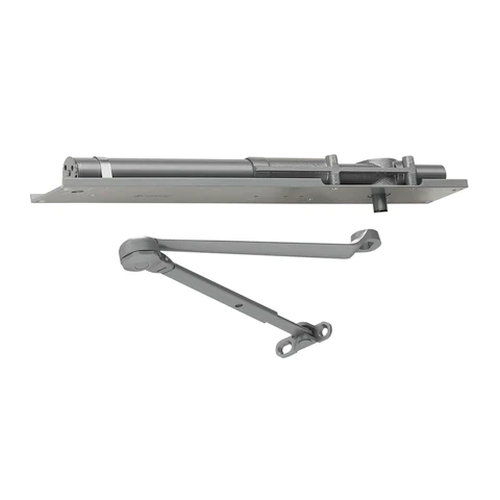

LCN 5036-H Hold Open Arm Concealed Door Closer, In Tube, Size 6

LCN 5036-H Hold Open Arm Concealed Door Closer, Size 6

Features
Body construction
• Cast iron body
• Full complement bearing
• 1 1⁄2" diameter piston
• 11⁄16" diameter double heat treated pinion journal

Fluid: All weather fluid

Handing: Handed

Size: Size 6
Exterior (and Vestibule) door width - 42" (1067 mm) to 48" (1219 mm)
Interior door width - 54" (1372 mm) to 60" (1524 mm)

Warranty: 15 years

Fasteners: Wood Screws and Torx Security Screws (optional)

Mounting: Concealed (in tube); aluminum frame requires minimum 1 3⁄4" (44 mm) x 4 1⁄2" (114 mm) tube

Arms: Regular Arm

Mounting Details (Concealed Mounting)
Butt hinges: Should not exceed 6" (152 mm) in width

Auxiliary stop: Recommended at hold open point or where the door cannot swing 180°

Top rail: Minimum 2 1⁄8" (54 mm) required

Door thickness: Maximum 1 3⁄4" (44 mm)

Wood frame: Installation simplified by wood mounting clip set 5030-416 for center pivoted or 5030-417 for offset pivoted and butt hung installations

Maximum opening
Butt hung doors can be templated for:
100°: A = 5 13⁄16" (148 mm), B = 11 13⁄16" (300 mm)
180°: A = A = 2 1⁄16" (52 mm), B = 8 1⁄16" (205 mm) trim permitting

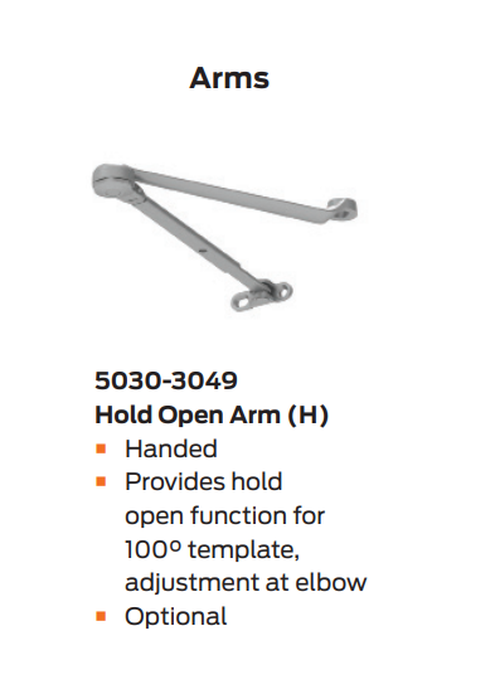

• Hold open points up to 100° only with Hold Open Arm (H)
• Center pivot mounting restricts opening to 120°. Hold open up to 120° with Hold Open Arm (H)
• Offset pivot mounting allows up to 115°, trim permitting. Hold open up to 115° with Hold Open Arm (H)

Finishes: powder coat
• 622 Matte Black
• 689 Aluminum
• 690 Statuary Bronze
• 691 Light Bronze
• 693 Gloss Black
• 695 Dark Bronze
• 696 Brass

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - Buy American Act

Notes:
• For interior or exterior doors
• Single acting cylinder in head frame
• Exposed arm on push side of door

Model: LCN 5036-H RH 689, 5036-H LH 689, 5036-H RH 690, 5036-H LH 690, 5036-H RH 693, 5036-H LH 693, 5036-H RH 695, 5036-H LH 695
