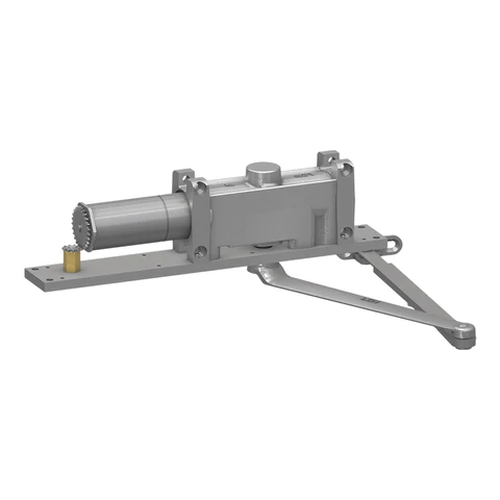

LCN 5015-REG Regular Arm Concealed Door Closer, In Frame, Size 5

LCN 5015-REG Regular Arm Concealed Door Closer, Size 5

Features
Body construction
• Cast iron body
• Full complement bearing
• 1 1⁄2" diameter piston
• 11⁄16" diameter double heat treated pinion journal

Fluid: All weather fluid

Handing: Handed

Size: Size 5
Exterior (and Vestibule) door width - 36" (914 mm) to 42" (1067 mm)
Interior door width - 48" (1219 mm) to 54" (1372 mm)

Warranty: 15 years

Fasteners: Wood Screws and Torx Security Screws (optional)

Mounting: Concealed (in frame); aluminum frame requires minimum 4" x 4" (102 mm) tube

Arms: Regular Arm

Mounting Details (Concealed Mounting)
Butt hinges: Should not exceed 6" (152 mm) in width

Top rail: Minimum 2 1⁄8" (54 mm) required

Maximum opening
Butt hung doors can be templated for:
100°: A = 10 3⁄16" (259 mm), B = 12" (305 mm)
180°: A = 5 1⁄2" (140 mm), B = 7 5⁄16" (186 mm) trim permitting
• Center pivot mounting restricts opening to 140°
• Offset pivot mounting allows up to 180°, trim permitting

Finishes: powder coat
• 622 Matte Black
• 689 Aluminum
• 690 Statuary Bronze
• 691 Light Bronze
• 693 Gloss Black
• 695 Dark Bronze
• 696 Brass

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - Buy American Act

Notes:
• For interior or exterior doors
• Single acting cylinder in head frame
• Exposed arm on hinge side of door

Model: LCN 5015-REG RH 689, 5015-REG LH 689, 5015-REG RH 690, 5015-REG LH 690, 5015-REG RH 693, 5015-REG LH 693, 5015-REG RH 695, 5015-REG LH 695
