LCN 4822-REG/18 Pneumatic Auto Equalizer Power Operator, Push Side Mounted w/ Regular Arm

LCN 4822-REG/18 Surface Mounted Electromechanical Benchmark Door Operator, Regular, Push Side Mounted, Top Jamb, 24" - 54" Door, 90 Deg. Powered, 100 Deg. Manual Swing, Machine and Wood Screw

Features
Body construction
• Cast iron body
• Full complement bearing
• 1-1/2" diameter piston
• 3/4" diameter double heat treated pinion journal

Fluid: All weather fluid

Handing: Non-handed

Size: Adjustable spring size 2-5

Warranty: 2 years

Cover: Metal cover (MC)

Fasteners: Wood and machine screws (WMS)

Mounting: Top jamb (push side)

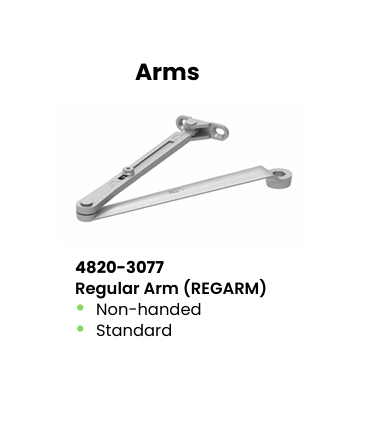

Arms: Regular Arm (REGARM), standard

Top Jamb (Push Side) Mounting Details
Butt hinges: Should not exceed 5" (127 mm) in width

Auxiliary stop: Recommended

Reveal: 4-1/2" (114 mm) allows up to 90° power opening and 100° manual opening

Top rail
• Minimum 1-3/4" (44 mm)
• Closer on 4820-18G plate requires 3" (76 mm) minimum

Head frame
• Minimum 1-3/4" (44 mm)
• With flush ceiling use plate, 4820-18G substituted for standard plate

Maximum opening
• Templating allows 90° power opening and 100° manual opening

Certifications: ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Model: LCN 4822-RE/18 689, 4822-RE/18 695, 4822-RE/18 693, 4822-RE/18 652
