LCN 4513T-STD 689 High Security Standard Arm Track Door Closer, Size 3, Aluminum Painted

LCN 4513T-STD 689 Heavy Duty High Security Standard Arm Track Door Closer, Size 3, Aluminum, Hinge (Pull Side) Mounting

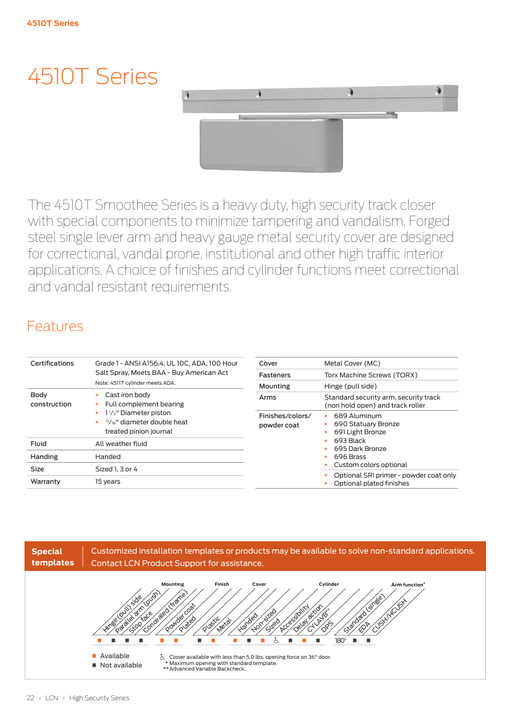

The 4510T Smoothee Series is a heavy duty, high security track closer with special components to minimize tampering and vandalism. Forged steel single lever arm and heavy gauge metal security cover are designed for correctional, vandal prone, institutional and other high traffic interior applications. A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.

Features
Body construction
• Cast iron body
• Full complement bearing
• 1-1/2" Diameter piston
• 11/16" diameter double heat treated pinion journal

Fluid: All weather fluid

Handing: Handed

Size: Sized 3

Warranty: 15 years

Cover: Metal Cover (MC)

Fasteners: Torx Machine Screws (TORX)

Mounting: Hinge (pull side)

Arms: Standard security arm, security track (non hold open) and track roller

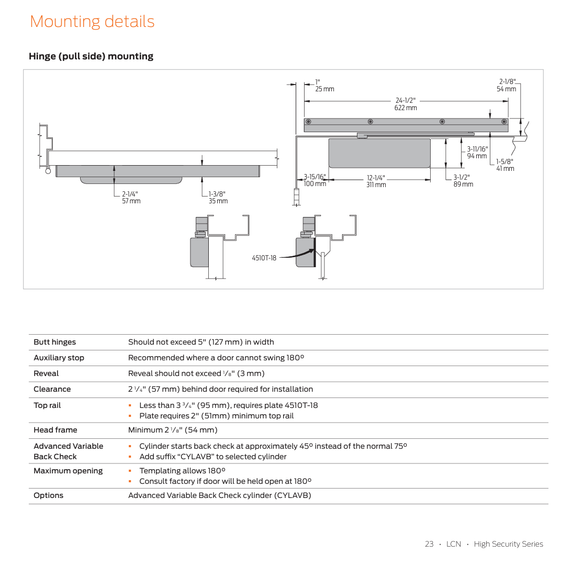

Mounting Details (Hinge (pull side) mounting)
Butt hinges: Should not exceed 5" (127 mm) in width

Auxiliary stop: Recommended where a door cannot swing 180°

Reveal: Reveal should not exceed 1/8" (3 mm)

Clearance: 2-1/4" (57 mm) behind door required for installation

Top rail
• Less than 3-3/4" (95mm), requires plate 4510T-18
• Plate requires 2" (51mm) minimum top rail

Head frame: Minimum 2-1/2" (54 mm)

Maximum opening: Templating allows 180°

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Ac
Note: 4511T cylinder meets ADA.

Model: LCN 4513T-STD RH 689, 4513T-STD LH 689
