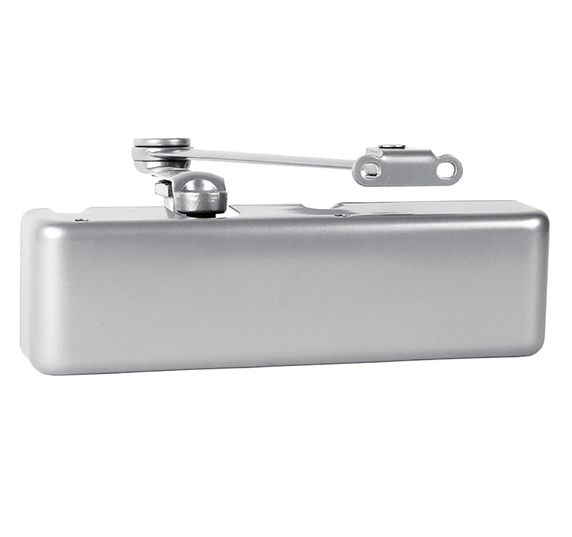

LCN 4511-EDA 689 High Security Door Closer w/ Extra Duty Arm, Aluminum Painted

LCN 4511-EDA 689 Heavy Duty High Security Extra Duty Arm Door Closer, Aluminum, Hinge (Pull Side) Mounting

The 4510 Smoothee Series is a heavy duty, high security closer with special components to minimize tampering and vandalism. Forged steel double lever arms and heavy gauge metal security covers are designed for correctional, vandal prone, institutional and other high traffic applications. A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.

Features
Body construction
• Cast iron body
• Full complement bearing
• 1-1/2" Diameter piston
• 11/16" diameter double heat treated pinion journal

Fluid: All weather fluid

Handing: Handed

Size: Sized 1; Adjustable, exterior, interior and vestibule

Warranty: 15 years

Cover: Metal Cover (MC)

Fasteners: Torx Machine Screws (TORX)

Mounting: Hinge (pull side)

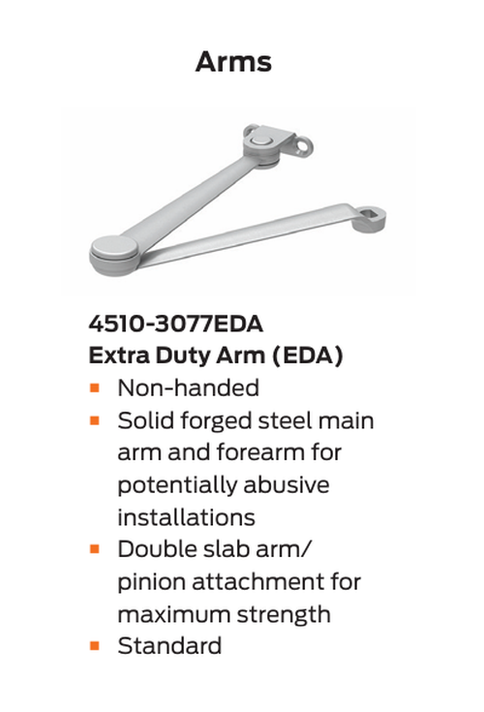

Arms: Extra heavy duty, non-hold open

Mounting Details (Hinge (pull side) mounting)
Butt hinges: Should not exceed 5" (127 mm) in width

Auxiliary stop: Recommended where a door cannot swing 140°

Reveal: Reveal should not exceed 1/8" (3 mm)

Clearance: 2-1/4" (57 mm) behind door required for installation

Top rail
• Less than 3-1/2" (89 mm), requires plate 4510-18
• Plate requires 2" (51mm) minimum top rail

Head frame: Less than 1" (25 mm)

Arm clearance: Above door 1 1⁄8" (29 mm) required

Maximum opening: Can be templated for
140°: A= 4 3⁄16" (106 mm); B = 9 7⁄8" (251 mm)

Delay action
• Add suffix “CYLDEL” to selected cylinder
• Not available with 4516 cylinder
• Delays closing from maximum opening to approximately 70°
• Delays time adjustable up to approximately 1 minute

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
Note: 4511 cylinder meets ADA.

Model: LCN 4511-EDA RH 689, 4511-EDA LH 689, 4511-EDA RH 689 DEL, 4511-EDA LH 689 DEL
