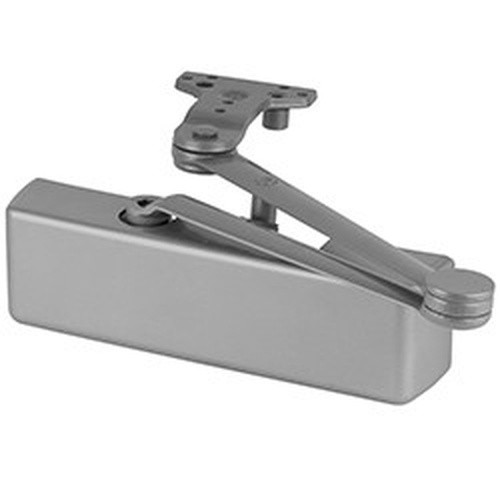

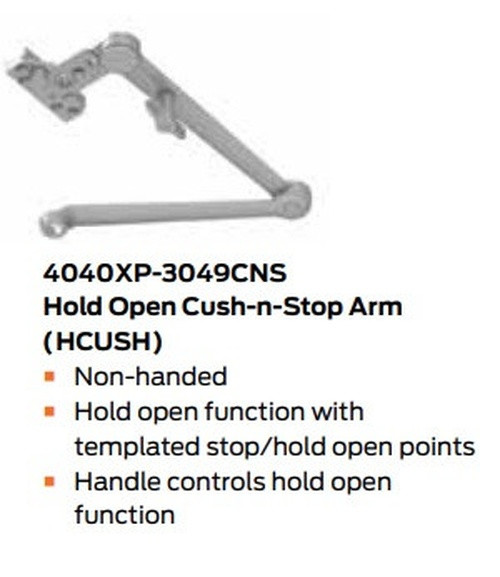

LCN 4040XP HCUSH Door Closer w/ Hold Open Cush-n-Stop Arm

LCN 4040XP HCUSH Door Closer w/ Hold Open Cush-n-Stop Arm

Features

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - Buy American Act

Body construction: Patent-pending positive stop, Patent-pending regulation valve indicators,
Independent speed adjustments, QR code for instructions and support,
Cast iron body, Full complement bearing, 1 1⁄2" diameter piston, Double heat treated pinion journa

Fluid: All weather liquid X fluid

Handing: Non-handed

Templating: Peel-n-Stick templates - 2 1⁄4" x 5" mounting hole pattern

Size: Adjustable spring size 1-6, includes LCN Green Dial

Warranty: 30 years

Cover: Redesigned snap-fit plastic cover (PC) with improved retention fit, standard - Metal Cover (MC), optional

Fasteners: Self reaming and tapping screws (SRT)

Mounting: Parallel Arm (Push Side)

Delay Action (CYLDEL): Many LCN closers can be ordered with a delayed action
function built into the cylinder. Delay Action (CYLDEL) is a special hydraulic circuit that provides additional time to
pass through the door. A special regulating screw controls the closing speed from maximum opening through
approximately 75°. After that point the normal main speed resumes control to close the doo

Finishes/colors/ powder coat: 622 Matte black, 689 Aluminum, 690 Statuary bronze, 691 Light bronze, 693 Black,695 Dark bronze, 696 Brass, Custom colors optional, Optional SRI primer - powder coat only, Optional plated finishes

Adjustments

There are several design features that make installation or adjustment of the 4040XP easier and more intuitive.

• LCN Green Dial provides a visual reference of the spring power setting, taking the guesswork out of spring power adjustments.

• Additional adjustments can be made to the back check, main, and latch regulation valves which are labeled for easy
   identification. − Labels correspond to a diagram with door swing zones located on the closer body.

• Patent-pending positive stop feature on all regulation valves. The improved staking feature prevents the screw from being         backed out and causing accidental damage to the product. − The patent-pending regulation valve indicators
   provide visual color indicators of how far a screw is backed out—the more visible the component, the faster the speed.
   − This makes adjustments simpler and more intuitive.

• New QR code that provides on-the-spot access to interactive installation and maintenance instructions and tech support.
