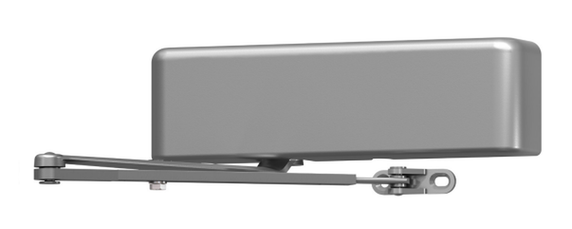

LCN 4021-H Hold Open Arm Door Closer - Mounting Top Jamb (Push Side)

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - Buy American Act

Body construction: Cast iron body . Full complement bearing . 1 1⁄2" diameter piston . 11⁄16" diameter double heat treated pinion journal

Fluid: All weather fluid

Handing: Handed

Templating: Peel-n-Stick templates - 2 1⁄2" x 6" mounting hole pattern

Size: Adjustable 1-5

Hold Open Arm: 4020-3049 - Provides hold open function, adjustable at elbow - 5 3/4" (146 mm) maximu

Power size: Non-sized cylinder (4011) adjustable for interior doors 24" to 54" and exterior doors 24" to 42"

Warranty: 30 years

Cover: Plastic Cover (PC), standard . Metal Cover (MC), optional

Fasteners: Self Reaming and Tapping Screws (SRT)

Mounting: Top jamb (Push side)

Arms: Regular arm

Finishes/powder coat: 689 Aluminum 690 Statuary bronze 691 Light bronze 695 Dark bronze 696 Brass

Model: ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695), LTBRZ - LIGHT BRONZE (BHMA 691), BRASS - BRASS (BHMA 696)

  Catalog Cut Sheet
