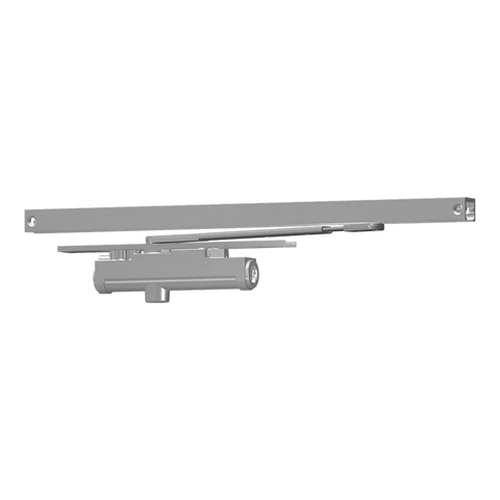

LCN 3133-H Concealed Hold Open Track Door Closer, In Door, Size 3

LCN 3133-H Hold Open Track Door Closer, Size 3, Handed

Features
Body construction
• Cast iron body
• Full complement bearing
• 1 1⁄8" diameter piston

Fluid: All weather fluid

Handing: Handed

Size: Size 3
Interior door width - 34" (864 mm) to 38" (965 mm)

Warranty: 15 years

Fasteners: Wood Screws and Torx Security Screws (optional)

Mounting: Concealed (in door)

Arms: Standard Arm And Track

Mounting Details (Concealed Mounting)
Butt hinges: Should not exceed 5" (127 mm) in width

Top rail: Minimum 4" (102 mm) required

Auxiliary stop
• Recommended at hold open point or where a door cannot swing 140°

Door thickness: 1 3⁄4" (44 mm) minimum

Door width: 2' 2" (660 mm) minimum

Maximum opening
• Templating allows 140°, trim permitting

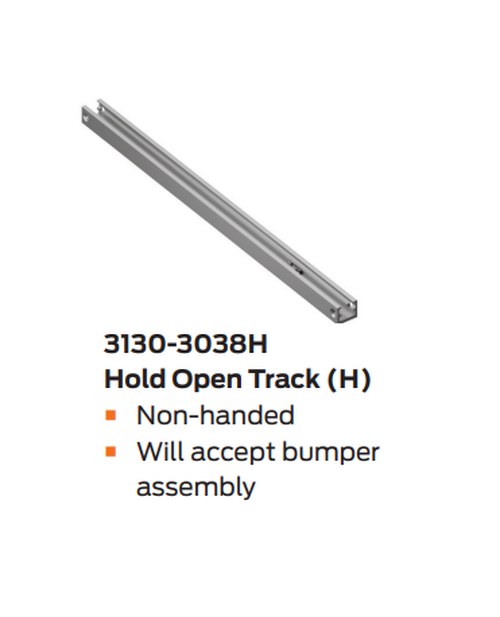

• Adjustable hold open points from 85° to 100°, with Hold Open Track (H)

Finishes: powder coat
• 622 Matte Black
• 689 Aluminum
• 690 Statuary Bronze
• 691 Light Bronze
• 693 Gloss Black
• 695 Dark Bronze
• 696 Brass

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - Buy American Act

Notes:
• For interior doors
• Single acting cylinder and standard arm in top rail of door
• Concealed track in head frame

Model: LCN 3133-H RH 689, 3133-H LH 689, 3133-H RH 690, 3133-H  LH 690, 3133-H RH 693, 3133-H LH 693, 3133-H RH 695, 3133-H LH 695
