LCN 3034-REG Concealed Regular Arm Door Closer, In Door, Size 4

LCN 3034-REG Grade 1 Regular (Double Lever) Concealed in Door Closer, Hydraulic Regular In Door Mounting, Double Lever Arm Regular with 180 Deg. Swing, Adjustable Backcheck, Size 4

Features
Body construction
• Cast iron body
• Full complement bearing
• 1 1⁄8" diameter piston

Fluid: All weather fluid

Handing: Handed

Size: Size 4
Exterior (and Vestibule) door width - 30" (762 mm) to 36" (914 mm)
Interior door width - 38" (965 mm) to 48" (1219 mm)

Warranty: 15 years

Fasteners: Wood Screws

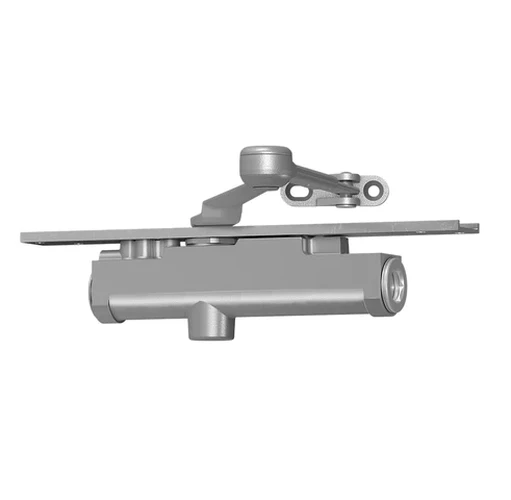

Mounting: Concealed (in door)

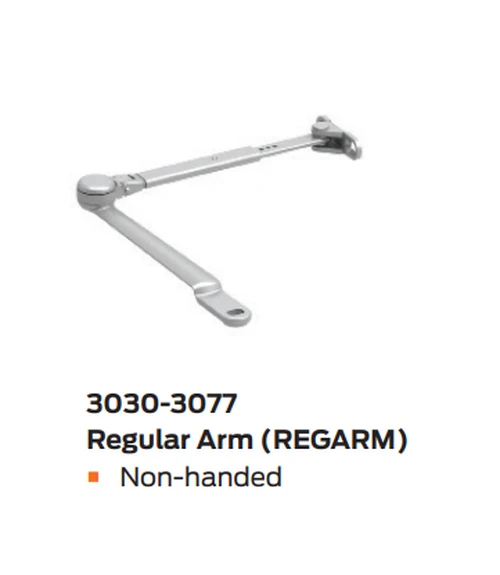

Arms: Regular arm

Mounting Details (Concealed Mounting)
Butt hinges: Should not exceed 5" (127 mm) in width

Auxiliary stop
• Recommended at hold open point or where a door cannot swing 180°

Top rail
• 1 3⁄4" (44 mm) minimum

Clearance: 2 13⁄16" (72 mm) behind door required for 90° installation

Delay action: Delays closing from 180°-70°. Delay time adjustable up to approximately 1 minute

Maximum opening
To 100°: A = 3 5⁄8" (92 mm), B = 10 1⁄4" (260 mm)
130°: A = 2 5⁄8" (67 mm), B = 9 1⁄4" (235 mm)
180°: A = 1 5⁄8" (41 mm), B = 8 1⁄4" (210 mm)

Arm clearance above door:
C = 1 1⁄4" (32 mm)

Finishes: powder coat
• 622 Matte Black
• 689 Aluminum
• 690 Statuary Bronze
• 691 Light Bronze
• 693 Gloss Black
• 695 Dark Bronze
• 696 Brass

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - Buy American Act

Notes:
• For interior doors
• Single acting cylinder in top rail of door
• Exposed arm on hinge side of door

Model: LCN 3034-REG RH 689, 3034-REG LH 689, 3034-REG RH 695 , 3034-REG LH 695
