LCN 3032-H Concealed Hold Open Arm Door Closer, In Door, Size 2

LCN 3032-H Grade 1 Hold Open Concealed in Door Closer, Hydraulic Regular In Door Mounting, Double Lever Arm Regular with 140 Deg. Swing, Adjustable Friction Hold Open, Adjustable Backcheck, Size 2

Body construction
• Cast iron body
• Full complement bearing
• 1 1⁄8" diameter piston

Fluid: All weather fluid

Handing: Handed

Size: Size 2
Interior door width - 38" (965 mm) to 48" (1219 mm)

Warranty: 15 years

Fasteners: Wood Screws

Mounting: Concealed (in door)

Arms: Regular arm

Mounting Details (Concealed Mounting)
Butt hinges: Should not exceed 5" (127 mm) in width

Auxiliary stop
• Recommended at hold open point or where a door cannot swing 180°

Top rail
• 1 3⁄4" (44 mm) minimum

Clearance: 2 13⁄16" (72 mm) behind door required for 90° installation

Delay action: Delays closing from 180°-70°. Delay time adjustable up to approximately 1 minute

Maximum opening
To 100°: A = 3 5⁄8" (92 mm), B = 10 1⁄4" (260 mm)
130°: A = 2 5⁄8" (67 mm), B = 9 1⁄4" (235 mm)
180°: A = 1 5⁄8" (41 mm), B = 8 1⁄4" (210 mm)

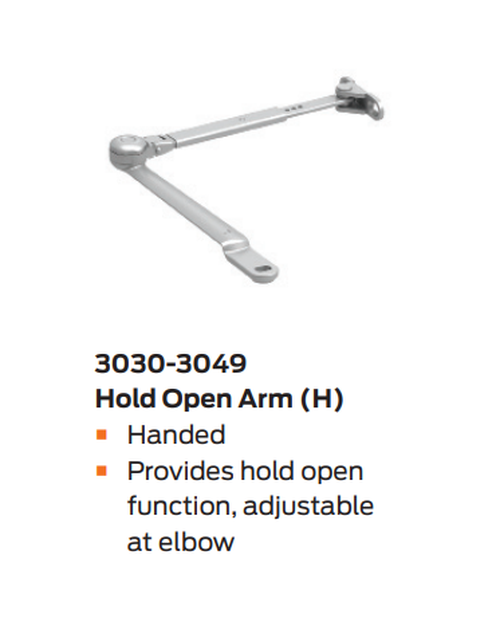

Hold open points up to maximum opening or 140°, whichever is less, with Hold Open Arm (H)

Arm clearance above door:
C = 1 1⁄4" (32 mm)

Finishes: powder coat
• 622 Matte Black
• 689 Aluminum
• 690 Statuary Bronze
• 691 Light Bronze
• 693 Gloss Black
• 695 Dark Bronze
• 696 Brass

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - Buy American Act

Notes:
• For interior doors
• Single acting cylinder in top rail of door
• Exposed arm on hinge side of door

Model: LCN 3032-H RH 689, 3032-H LH 689, 3032-H RH 690, 3032-H LH 690
