LCN 2614-STD Concealed Pneumatic Auto Equalizer Power Operator

LCN 2614-STD Grade 1 Overhead Concealed Electromechanical Benchmark Door Operator, Slide Track Arm Standard, In Header Mounted, 30" - 48" Door, 90 Deg. Powered, 160 Deg. Manual Swing, Machine and Wood Screws, Aluminum Painted

The 2610 Auto Equalizer™ is LCN’s pneumatically powered multi-door solution. This low-energy automatic operator provides easy access for people with disabilities, or the elderly. Designed primarily for manual opening applications that occasionally require automatic opening.

Features
Body construction
• Cast iron body
• Full complement bearing
• 1-1/2" diameter piston
• 11/16" diameter double heat treated pinion journal

Fluid: All weather fluid

Handing: Handed

Size: Sized 4

Warranty: 2 years

Fasteners: Wood and machine screws (WMS)

Mounting: Concealed in frame

Arms: Single lever arm, mounting/finish plate, standard track

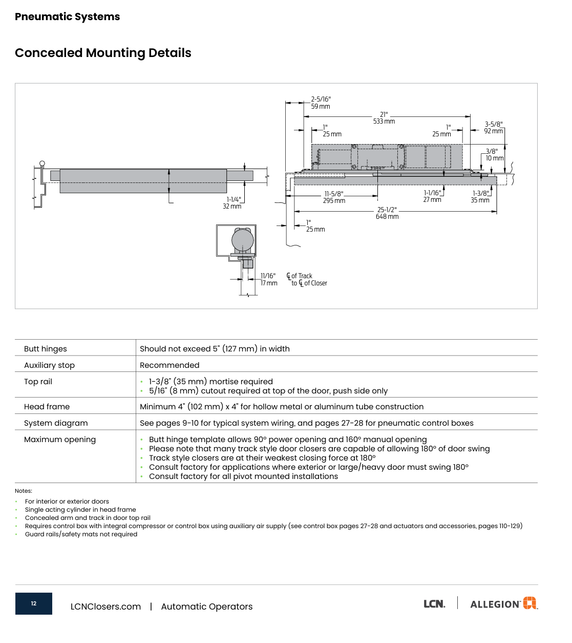

Concealed Mounting Details
Butt hinges: Should not exceed 5" (127 mm) in width

Auxiliary stop: Recommended

Top rail
• 1-3/8" (35 mm) mortise required to of Closer
• 5/16" (8 mm) cutout required at top of the door, push side only

Head frame: Minimum 4" (102 mm) x 4" for hollow metal or aluminum tube construction

Maximum opening
• Butt hinge template allows 90° power opening and 160° manual opening
• Please note that many track style door closers are capable of allowing 180° of door swing
• Track style closers are at their weakest closing force at 180°
• Consult factory for applications where exterior or large/heavy door must swing 180°
• Consult factory for all pivot mounted installations

Certifications: ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act.

Model: LCN 2614-STD RH 689, 2614-STD LH 689, 2614-STD RH 695, 2614-STD LH 695
