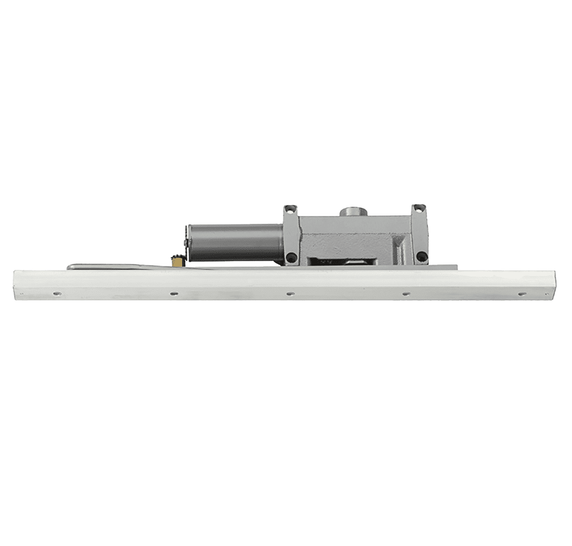

LCN 2215-STD 689 High Security Concealed Standard Track Door Closer, Size 5, Aluminum Painted

LCN 2215-STD 689 High Security Concealed Standard Track Door Closer, Concealed In Frame, Vandal Resistant, Size 5, Aluminum

The concealed 2210 Series, heavy duty, high security track closer features complete concealment with special components to minimize tampering and vandalism. Forged steel, single lever arm and heavy steel mounting plate are designed for correctional, vandal prone, institutional, and other high traffic applications. A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.

Features
Body construction
• Cast iron body
• Full complement bearing
• 1-1/2" diameter piston
• 11/16 diameter double heat treated pinion journal

Fluid: All weather fluid

Handing: Handed

Size: Size 5

Warranty: 15 years (2210)

Cover: Two piece metal finish plates

Fasteners: Torx Machine Screws (TORX)

Mounting
• Concealed, single acting cylinder in head frame
• Concealed, arm and track in top rail of door

Arms: Standard security arm and security track

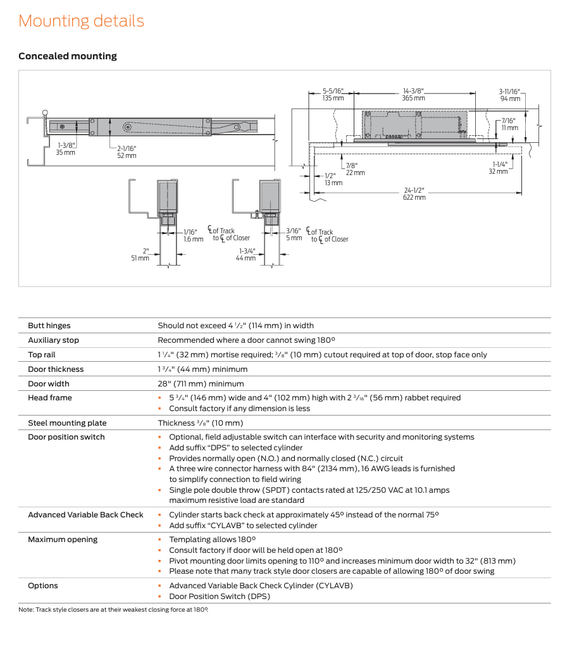

Mounting Details (Concealed Mounting)
Butt hinges: Should not exceed 4-1/2" (114 mm) in width

Auxiliary stop: Recommended where a door cannot swing 180°

Top rail: 1-1/4" (32 mm) mortise required; 3/8" (10 mm) cutout required at top of door, stop face only

Door thickness: 1-3/4" (44 mm) minimum

Door width: 28" (711 mm) minimum

Head frame: 5-3/4" (146 mm) wide and 4" (102 mm) high with 2-3/16" (56 mm) rabbet required

Steel mounting plate: Thickness 3/8" (10 mm)

Door position switch
• Optional, field adjustable switch can interface with security and monitoring systems
• Add suffix “DPS” to selected cylinder
• Provides normally open (N.O.) and normally closed (N.C.) circuit
• A three wire connector harness with 84" (2134 mm), 16 AWG leads is furnished to simplify connection to field wiring
• Single pole double throw (SPDT) contacts rated at 125/250 VAC at 10.1 amps maximum resistive load are standard

Maximum opening
• Templating allows 180°
• Pivot mounting door limits opening to 110° and increases minimum door width to 32" (813 mm)
• Please note that many track style door closers are capable of allowing 180° of door swing

Certifications: Grade 1 - ANSI A156.4, UL 10C, 100 Hour Salt Spray, Meets BAA - Buy American Act

Model: LCN 2215-STD RH 689, 2215-STD LH 689, 2215DPS-STD RH 689, 2215DPS-STD LH 689
