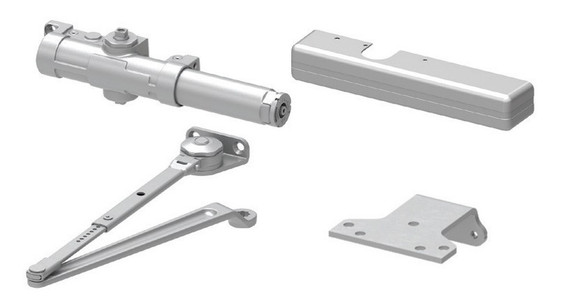

LCN 1461 Hw/PA Door Closer w/ Hold Open Arm

LCN 1461 Hw/PA Door Closer w/ Hold Open Arm

Hold Open Arm (H): Non-handed, Mounts hinge side, top jamb or parallel arm (62PA required),
Hold-open adjustable at shoe

Features

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - Buy American Act

Body construction: Cast aluminum body, Full complement bearing, 1 1⁄4" diameter piston, 3⁄4" diameter single heat treated
pinion journal

Fluid: All weather fluid

Handing: Non-handed

Templating: Peel-n-Stick templates - 1" x 7 1⁄2" mounting hole pattern

Size: Adjustable spring size 1-6 (Includes patented Green Dial)

Warranty: 30 years

Cover: Slim line plastic, standard - Full plastic and metal, optional

Fasteners: Self reaming and tapping screws (SRT)

Mounting: Hinge (pull side), top jamb (push side), parallel arm (push side)

Arms: Standard regular pull side, and top jamb

Finishes/colors/ powder coat: 689 Aluminum, 690 Statuary Bronze, 691 Light Bronze, 693 Black, 695 Dark Bronze, 696 Brass
