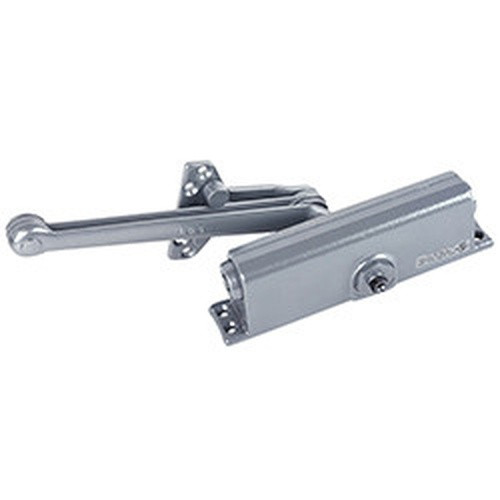

LCN 1261-CUSH Cast Iron Door Closer w/ Cush-n-Stop Arm

LCN 1261-CUSH Cast Iron Door Closer w/ Cush-n-Stop Arm

Cush-n-Stop Arm: Features solid forged steel main arm and forearm with stop in soffit shoe

Features:

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Body construction: Cast aluminum body, Full complement bearing, 1 3⁄8" diameter piston,
5⁄8" diameter single heat treated pinion journal

Fluid: All weather fluid

Handing: Non-handed

Templating: Peel-n-Stick templates - 3⁄4" x 9 1⁄16" mounting hole pattern

Size: Adjustable spring size 1-5

Warranty: 15 years

Cover: Slim line cover, optional

Fasteners: Universal screw pack (UNIV)

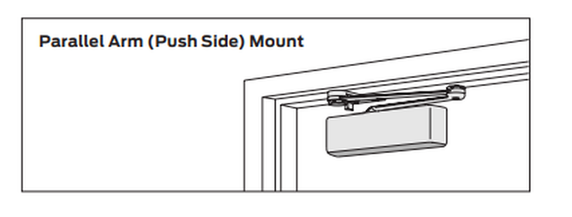

Mounting: Hinge (pull side), top jamb (push side), parallel arm (push side)

Arms: Tripack includes regular, top jamb, and parallel arm (RWPA
