LCN 1250-EDA 689 Door Closer, w/ Extra Duty Arm, Aluminum Painted Finish

LCN 1250-EDA 689 Door Closer, w/ Extra Duty Arm, Aluminum Painted Finish

Extra Duty Arm - Features solid forged steel main and forearm for potentially abusive installations

Features

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Body construction: Cast aluminum body Full complement bearing 1 3⁄8" diameter piston 5⁄8" diameter
single heat treated pinion journal

Fluid: All weather fluid

Handing: Non-handed

Templating: Peel-n-Stick templates - 3⁄4" x 9 1⁄16" mounting hole pattern

Size: Adjustable spring size 1-5

Warranty: 15 years

Cover: Slim line cover, optional

Fasteners: Universal screw pack (UNIV) Standard universal screw pack includes self reaming and tapping
Screws (SRT), machine screws, wood screws and thru bolts (Torx security and longer thru bolts optional)

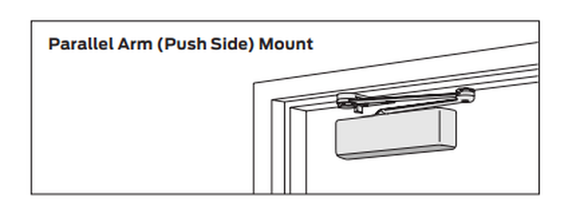

Mounting: Hinge (pull side), top jamb (push side), parallel arm (push side)

Arms: Tripack includes regular, top jamb, and parallel arm (RWPA)

Finishes/colors/ powder coat: 689 Aluminum, 690 Statuary Bronze, 691 Light Bronze, 693 Black,
695 Dark Bronze, 696 Brass, Custom colors optional, Optional SRI primer - powder coat only
