Kaba Simplex LRP1010 Pushbutton Exit Trim, RHR Doors

Kaba Simplex LRP1010 Pushbutton Exit Trim, Combination Only, Right Hand Reverse

The Simplex LP1000 Series provides exterior access by combination, while allowing free egress with Exit Device (not
supplied). This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single
access-code and is programmed via the keypad without removing the lock from the door.

Function: 10 - Combination Entry Only

Features & Benefits
Access Control: Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and
collecting keys and cards. Provides exterior access by combination, while allowing free egress with Exit Device (not supplied).

No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements

Locking Device Options
Rim Exit Device: Compatible with most leading brands of Exit Devices— see list below (Exit Device and mounting
hardware not included)

Number of Codes: Single access code—one easy-to-manage code for all users

Handing: Factory-handed; not field reversible

Operation Modes: Pushbutton Access - Exit Device may be “dogged” without affecting the LP1000

Economical: A cost-effective access control solution

Mechanical Features
Construction: Heavy-duty cast front housing; heavy-duty mounting plate; fixed ADA-compliant lever

Numeric Keypad: Vandal resistant, solid metal pushbuttons

Handing: Factory-handed; not field reversible

Exit Device Hub Rotation: Up to 60°, counterclockwise for left hand and clockwise for right hand

Tailpiece: 2¾“ (70 mm) tailpiece for Exit Device operation from outside Optional 5“ (125 mm) tailpiece for freezer doors
(sold separately, part # 74773-000-01)

Minimum Stile: 5" (127 mm) (Recommended)

Weight: 8 lbs. (3.6 kg)

Finishes: 26D - Satin Chrome, 03 - Bright Brass, 026 - Bright Chrome, 05 - Antique Brass

Installation
Door Preparation: Recessed through bolts may be required for Exit Device preparation

Door Thickness: 1⅜“ (35 mm) to 2¼“ (57 mm)

Items Supplied Include: Installation manual, full-scale template, combination change tool, and required lock installation hardware only

Certification & Testing
Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant lever

Durability: Weather resistant

Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors

Warranty: 3 years

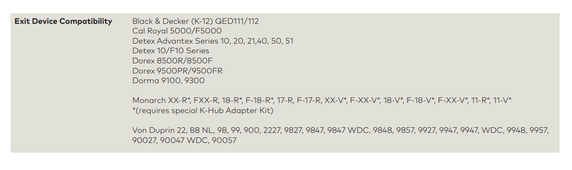

Exit Device Compatibility: Black & Decker (K-12) QED111/112
• Cal Royal 5000/F5000
• Detex Advantex Series 10, 20, 21,40, 50, 51
• Detex 10/F10 Series
• Dorex 8500R/8500F
• Dorex 9500PR/9500FR
• Dorma 9100, 9300
• Monarch XX-R*, FXX-R, 18-R*, F-18-R*, 17-R, F-17-R, XX-V*, F-XX-V*, 18-V*, F-18-V*, F-XX-V*, 11-R*, 11-V*
*(requires special K-Hub Adapter Kit)
• Von Duprin 22, 88 NL, 98, 99, 900, 2227, 9827, 9847, 9847 WDC, 9848, 9857, 9927, 9947, 9947, WDC, 9948, 9957, 90027, 90047 WDC, 90057
Cannot be used with mortise design or vertical rod Exit Devices
ATTENTION: Compatibility is subject to change if modifications are made by Exit Device manufacturers without dormakaba knowledge.

Model: Kaba Simplex LRP1010 26D, LRP1010 03, LRP1010 05, LRP1010 026
