Kaba Simplex LL1021B Pushbutton Lock, W/ Key Override, LH & LHR Doors

Pushbutton Cylindrical Lever Lock, Combination Entry Function with Key Override,1/2" Throw Latch, 6/7-Pin SFIC Prep, Less Core, Right Hand/Right Hand Reverse

Specifications

Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers

Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on “A” labeled doors

Numeric Keypad: Vandal resistant, solid metal pushbuttons

Handing: Factory-handed; not field reversible

Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)
Optional Finishes Bright Brass 03 (605), Bright Chrome 026 (625)

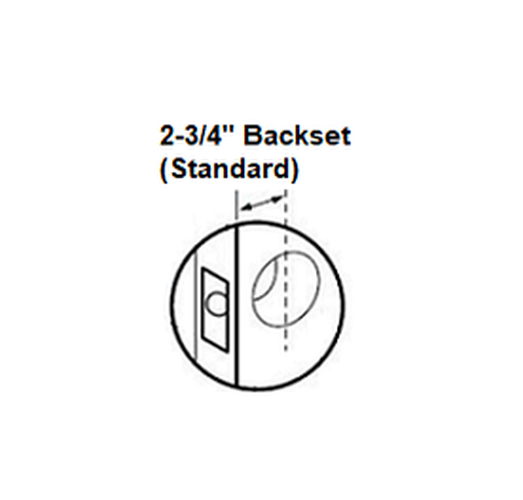

Backset: 2 ¾" (70 mm)

Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)

Minimum Stile Recommended: 5" (127 mm)

Weight: 8.25 lbs. (3.7 kg)

Strike: Standard strike plate; ASA strike plate

Installation
Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.

Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors

Key Override
Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included

Certification and Testing
Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers

Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant

Fire Rating: 3-hour UL/ULC fire rating for “A” labeled doors

Warranty: Warranty 3-year warranty

Model: Kaba Simplex LL1021B 26D, LL1021B 05, LL1021B 03, LL1021B 026
