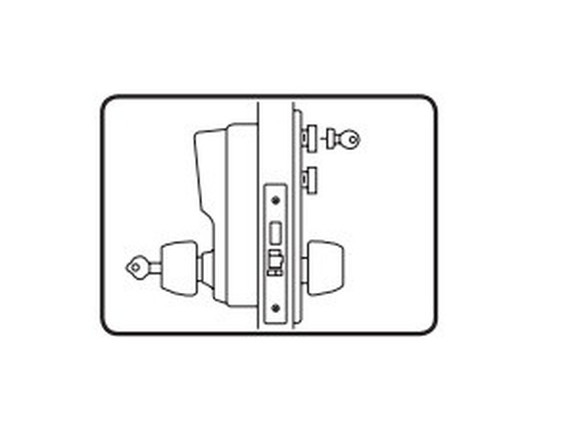

Kaba Simplex L8148R Mortise Combination Lock, Accepts Sargent LFIC

Mortise Combination Lever Lock, Left Hand, Key Override, Passage, Lockout, Deadbolt, Sargent LFIC Prep, Less Core

• Combination Entry - Single access code—one easy-to-manage code for all users.

• Key Override - Sargent large format IC core (core not included).

• Passage - allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key. Access is permitted using key override.

• Lockout - disables the lock from the inside so that the entry codes cannot be used to gain access.

• Deabolt - added security of 1" deadbolt. Access permitted by combination or key override.

Features

No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements

Locking Device: Mortise with ¾" (19 mm) two-piece anti-friction latch

Programming: Lock is easily programmed via keypad without removing lock from the door

Handing: Factory-handed; not field reversible

Economical: A cost effective access control solution

Technical data:

Construction: Cast front housing; unified trim plate; fixed ADA—compliant levers

Numeric Keypad: Vandal resistant, solid metal pushbuttons

Standard Finishes: Antique Brass 05 (609) Satin Chrome 26D (626)

Optional Finishes: Bright Chrome 026 (625) Bright Brass 03 (605)

Backset: 2¾" (70 mm)

Latch: ¾" (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt

Minimum Stile Recommended: 5" (127 mm)

Strike: 4⅞" (124 mm) L x 1¼" (32 mm) W x ¼" (6 mm) D Deadbolt/Latch mortise strike plate

Door Preparation: Easily installs on wood or metal doors. Standard (86) mortise preparation

Door Thickness: 1¾" (44 mm) to 2¼" (57 mm)

Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers

Durability: Weather resistant

Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors

Warranty: 3-year warranty

Model: Kaba Simplex L8148R 26D, L8148R 03
