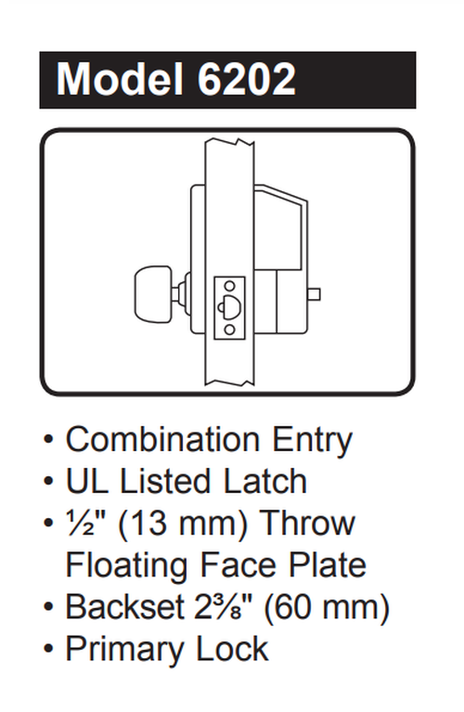

Kaba Simplex 6202 Pushbutton Lock, 2-3/8" Backset

Kaba Simplex 6202 Cylindrical Combination Lock, Exterior Thumbturn, Interior Knob, 2-3/8" Backset, 1/2" Throw Latch

Access Control
Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling,
and collecting keys and cards. Provides fully mechanical exterior access by combination, while
allowing free egress at all times by interior knob.

• Construction: All metal cast front housing, force-resistant, clutch-protected exterior thumbturn, unified interior trim plate, fixed interior knob


• Numeric Keypad: Vandal resistant, solid metal pushbuttons


• Handing: Factory-handed left; easily field reversible


• Latch: ½" (13 mm) throw latch, floating faceplate (UL listed)


• Backset: 2⅜" (60 mm) backset


• Minimum Stile Recommended: 5" (127 mm)


• Strike: Standard strike plate


• Installation: ASA 161 door preparation with two additional through bore holes. Lock can be inverted if the existing auxiliary lock obstructs installation.


• Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm); wood or metal


• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors


• Durability: Weather resistant


• Warranty: 1-year warranty

Model: Kaba Simplex 6202 86,6202 60, 6202 85
