Kaba Simplex 5010MWL Pushbutton Exit Device Trim, Accepts Medeco LFIC

Kaba Simplex Exit Trim, Winston Lever, Medeco LFIC Prep, Less Core

Combination Entry W/ Key Override: Large format — Medeco/ASSA/Yale/Abloy (5 or 6-pin length)

Exterior Combination Change

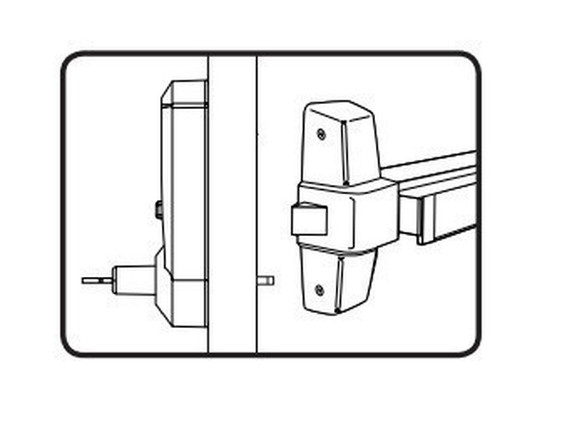

Locking Device Options: Rim Exit Device - Compatible with most leading brands of Exit Devices (Exit Device and mounting
hardware not included).

Latch and Exit Device Not supplied.

Exit Trim: May be "dogged" if Exit Device allows

Access Control: Mechanical pushbutton lock—eliminates problems and costs associated with issuing, controlling,
and collecting keys and cards.

No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements

Number of Codes: Single access code—one easy-to-manage code for all users

Programming: Lock is easily programmed via keypad without removing the lock from the door

Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field

Accessibility Standard: Americans with Disabilities Act (ADA)

Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes

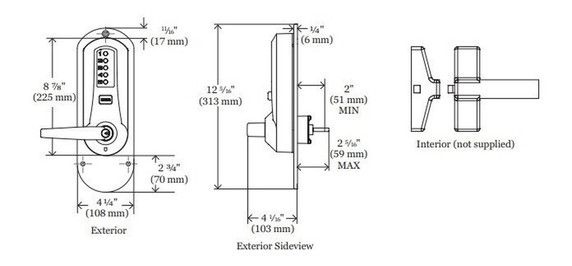

Door Thickness: Exit Device — 1 ¾" (44 mm) to 2 ¼" (57 mm). Pre-assembled to accommodate doors 1 ¾" (44 mm) to 2 ⅛" (54 mm)

Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant, wear tested for extensive use in indoor
and outdoor applications

Warranty: Three-year warranty

Standard Finishes: Satin Chrome 26D (626) housings and levers Black (676) housings with Satin Chrome (626) levers and accents

Optional Finishes: Bright Brass 03 (605) housings and levers, Satin Brass 04 (606) housings and levers, Bright Chrome 026 (625)
housings and levers, Dark Bronze 744 housings and levers with brass accents.

Model: Kaba Simplex 5010MWL 26D, 5010MWL 744
