Kaba Simplex 1032 Mechanical Pushbutton Knob Lock w/Passage, For 2-3/8" Backset

Kaba Simplex 1032 Grade 1 Pushbutton Cylindrical Knob Lock, Combination Entry/Passage Functions, 2-3/8" Backset, 1/2" Throw Latch, Field Reversible

Specifications

Construction: Heavy-duty, all-metal cylindrical lock housing; compliant with ANSI 156.2 Grade 1; molded front cover, brass adjusting plate; cast copper fixed knobs.

Passage (select models)—allows access without using the lock entry code. Feature activated from the inside
with a thumbturn or key (included with all passage feature models).

Door thickness: 1 3/8” (35 mm) to 2 1/4” (57 mm), wood or metal

Plywood: T-type plywood, DB-type box plywood or ASA-type plywood.

Backset: 2-3/8" Backset

Fire Rating: 3-Hour UL/ULc Fire Rating For "A" Labelled Doors

Installation: ASA 161 preparation with additional through bore holes; 1".

Door handing: Reversible for left-hand doors.

Control: Tool for changing the combination.

Finishes: 03 - Bright Brass.05 - Antique Brass.026 - Bright Chrome.26D - Satin Chrome.

Weight: 7.25 lb.

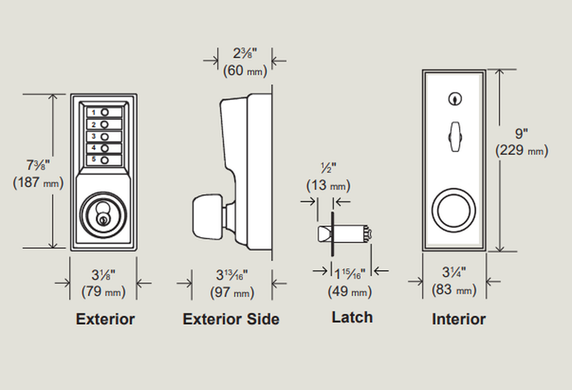

Dimension: 7-3/8" x 3-1/8"; 3-13/16" Projection

Model: Kaba Simplex 1032 26D, 1032 03
