Kaba Simplex 1021B Mechanical Pushbutton Knob Lock w/ Key Override, Accepts BEST SFIC

Grade 1 Pushbutton Cylindrical Knob Lock, Combination Entry Function with Key Override, 2-3/4" Backset, 1/2" Throw Latch, 6/7-Pin SFIC Prep, Less Core, Field Reversible

Specifications

Construction: Heavy-duty, all-metal cylindrical lock housing; compliant with ANSI 156.2 Grade 1; molded front cover, brass adjusting plate; cast copper fixed knobs.

Door thickness: 1 3/8” (35 mm) to 2 1/4” (57 mm), wood or metal

Plywood: T-type plywood, DB-type box plywood or ASA-type plywood.

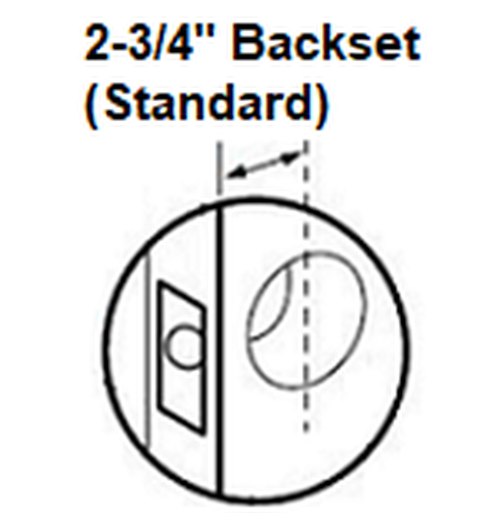

Backset: 2¾" (70 mm)

Fire Rating: 3-Hour UL/ULc Fire Rating For "A" Labelled Doors

Installation: ASA 161 preparation with additional through bore holes; 1".

Key Override Interchangeable Core: Small format—Best and equivalents (6 or 7-pin length); core not included

Door handing: Reversible for left-hand doors.

Control: Tool for changing the combination.

Finishes: 03 - Bright Brass.05 - Antique Brass.026 - Bright Chrome.26D - Satin Chrome.

Weight: 7.25 lb.

Dimension: 7-3/8" x 3-1/8"; 3-13/16" Projection

Model: Kaba Simplex 1021B 26D, 1021B 05, 1021B 03, 1021B 026
