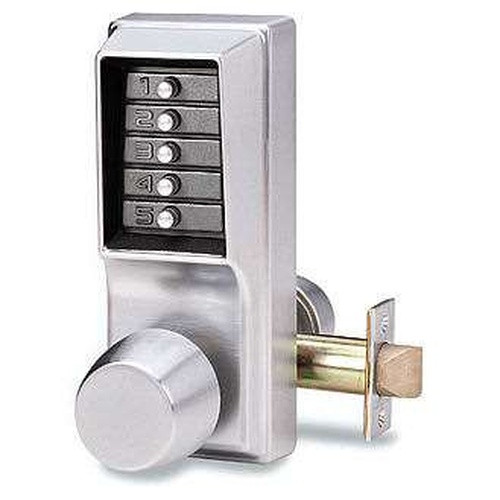

Kaba Simplex 1011 Mechanical Pushbutton Knob Lock, Combination Entry Only

Kaba Simplex 1011 Mechanical Pushbutton Knob Lock, Combination Entry Only, No Key Override, 2-3/4" Backset, 1000 Series

Specifications

Construction: Heavy-duty, all-metal cylindrical lock housing; compliant with ANSI 156.2 Grade 1; molded front cover, brass adjusting plate; cast copper fixed knobs..

Door thickness: 1 3/8” (35 mm) to 2 1/4” (57 mm), wood or metal

Plywood: T-type plywood, DB-type box plywood or ASA-type plywood.

Backset: 2¾" (70 mm)

Fire Rating: 3-Hour UL/ULc Fire Rating For "A" Labelled Doors

Installation: ASA 161 preparation with additional through bore holes; 1".

Door handing: Reversible for left-hand doors.

Control: Tool for changing the combination.

Finishes: 03 - Bright Brass.05 - Antique Brass.026 - Bright Chrome.26D - Satin Chrome.

Weight: 7.25 lb.

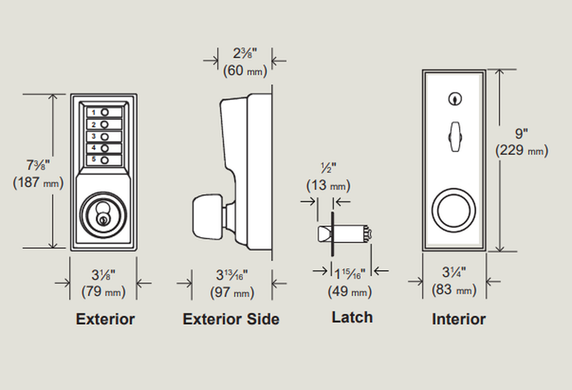

Dimension: 7-3/8" x 3-1/8"; 3-13/16" Projection

Model: Kaba Simplex 1011 26D, 1011 05, 1011 03, 1011 026
