Ives 8102HD-0 Door Pull - 3/4” Round - 10" CTC

8102HD-0 Straight Door Pull, 10" CTC, 3/4" Diameter, 1-1/2" Clearance

Features: Heavy Duty Mounting Hardware Exceeds Industry Standards; Material Size 3/4” Round

Projection: 2-1/4”

Clearance: 1-1/2”

Center to Center: 10”

Overall Length: 10-3/4”

Mounting hardware:
• Heavy duty mounting hardware exceeds industry standards
• 5⁄16-18 mounting hardware
• Standard mounting hardware for door thickness of 1 1⁄2" to 1 3⁄4"

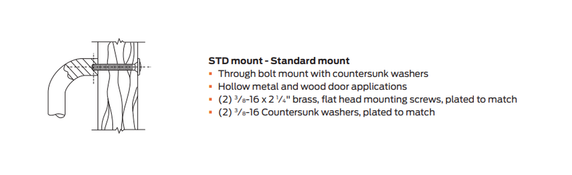

• Comes standard with through bolt screws and decorative washers (STD - mount)

General information

ANSI/BHMA Certified
All Ives architectural pulls, push bars, decorative pulls, and long door pulls meet ANSI/BHMA 156.06.

Material
All architectural pulls, push bars and decorative pulls are made of heavy duty, solid bar stock or castings. All
long door pulls are made from tubular stock. Available material substrates are below. See pull model detailed
pages for material availability.

Stainless steel 304 Series, Stainless steel 316 Series (Standard for all EZ pulls, EZ push/ pull combo, and long door pulls.
Available on 9100 series push bars as well.) Aluminum 6061-T6 Alloy

Care and maintenance for stainless steel finishes
Stainless steel requires periodic cleaning just as other materials do when in service. Stainless architectural
building components, for instance, are subject to road salt spray at ground level and deposits from polluted
urban air at higher levels. Finger marks, deposits from tobacco smoke, stains from hard water or food
left on to dry all detract from the original attractive appearance of stainless steel applications.
Cleaning methods and the frequency with which there are employed vary considerably according
to application. One of the outstanding features of stainless steel is the ease with which its fine
appearance can be maintained. In many instances, only periodic warm water wash is sufficient to
restore the original shine. In other cases, cleansing with a strong sterilizing solution may be required
more frequently. Between these extremes are a broad range of cleaning requirements and methods.
In all cases, there are some important “do’s and dont’s” that should be followed.

Do
• Wash regularly with warm water and mild soap detergent using a clean cloth or soft brush
• Remove stubborn grime using recommended cleaners and methods
• Always clean in the direction of the original polish lines
• Always rinse after cleaning and wipe dry

Don't
• Don’t use ordinary steel wool or other metal scrapers to remove stubborn dirt
• Don’t allow dirt to accumulate
• Don’t allow protective coatings to remain on new building components; Remove all traces
of adhesive as well as plaster, terrazzo, paint and other construction “splashes”
• Don’t use harsh, untested cleaners

Heavy duty
All Ives architectural pulls, push bars and long door pulls come standard with heavy duty (HD)
machining and mounting hardware to withstand high traffic and abuse applications which exceed
industry standards. Many decorative pulls also come standard with heavy duty machining and
hardware. Please see the list of pulls that come standard with heavy duty mounting hardware.

Model: 8102HD-0 US26D, 8102HD-0 US32d, 8102HD-0 US28
