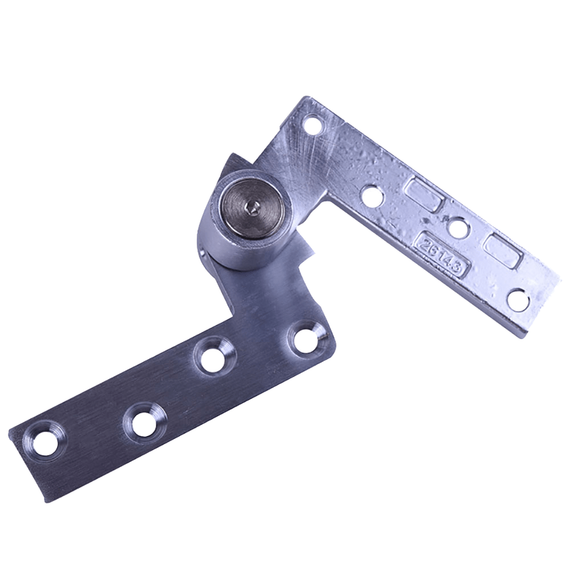

Ives 7212 TOP US26D 3/4" Offset Top Pivot, Header Mount, Satin Chrome Finish

Ives 7212 TOP US26D 3/4" Offset Top Pivot, Header Mount, Satin Chrome Finish

Ives offers 3/4" offset pivots designed for robust support and smooth operation, perfect for doors up to 200 pounds. These pivots ensure precise alignment and ease of installation.

3/4" Offset pivot, 200lb with top header mount
• Maximum door load 200 pounds
• Recommended for use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Vertical adjustment range 3/16", with positive locking
• 7212 Top (7212-7215-7222-7226-7227 Top), header mount

Specifications
Material substrate: Made from cast brass

Certifications
• Meets ANSI/BHMA A156.4 C07131
• UL 10C Listed (20 min)

Model: Ives 7212 TOP US26D
