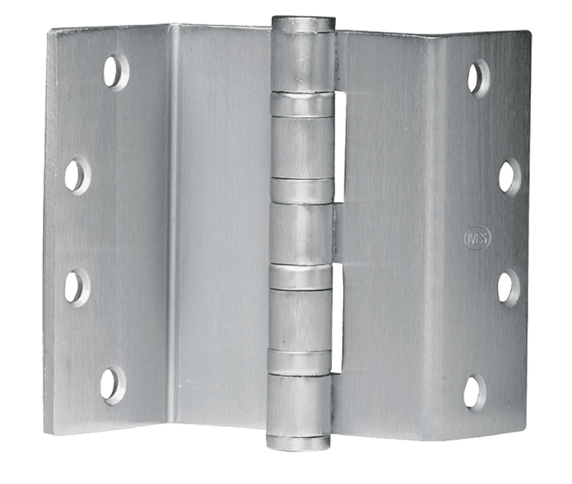

Ives 5BB1HWBSC 4.5 630 Five Knuckle Ball Bearing Hinge, Heavy Weight, 4-1/2" Beveled Swing Clear, Satin Stainless Steel Finish

Ives 5BB1HWBSC 4.5 630 5-Knuckle Ball Bearing Hinge, Heavy Weight, 4-1/2", Beveled Swing Clear, Satin Stainless Steel Finish

5 Knuckle, ball bearing, heavy weight, swing clear, full mortise hinges
• Designed to completely clear the opening when door is opened 92°
• Recommended for use in ADA door opening applications
• 5BB1HWBSC made for beveled edge doors
• Recommended for heavier weight doors (>150 lbs
• Recommended for high frequency usage (400 cycles per day)
• Made with four ball bearing assemblies
• Packed with fasteners for hollow metal and wood doors−12-24 x 1⁄2 UFPHMS, 12 x 1 1⁄4 FPHWS

Specifications
Material substrate: Made from 1040 steel or 304 series stainless steel

Dimensions
Height x Width: 4.5
Size (mm):  114
Gauge: 0.180

Certifications
• Certified to ANSI/BHMA A156.1 for performance standards
• Meets ANSI/BHMA 156.7 for template hinge dimensions

Model: Ives 5BB1HWBSC 4.5 630
