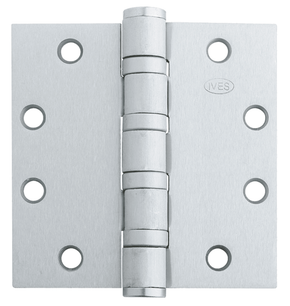

Ives 5BB1HW 5.0X4.5 Five Knuckle Ball Bearing Hinge, Heavy Weight, 5" x 4-1/2"

Ives 5BB1HW 5.0X4.5 5-Knuckle Ball Bearing Hinge, Heavy Weight, 5" x 4-1/2"

5 Knuckle, ball bearing, heavy weight full mortise hinge
• Recommended for heavier weight doors (>150 lbs)
• Recommended for high frequency usage (400 cycles per day)
• Made with four ball bearing assemblies
• Recommended for use with a door closer ƒ
• Packed with fasteners for hollow metal and wood doors − 12-24 x 1 ⁄2 UFPHMS, 12 x 1 1 ⁄4 FPHWS

Specifications
Material substrate: Made from brass, 1040 steel or 304 series stainless steel

Dimensions
Height x Width: 5.0 x 4.5
Size (mm):  127 x 114
Gauge: 0.190

Certifications
• Certified ANSI/BHMA A156.1 for performance standards
• Meets ANSI/BHMA 156.7 for template hinge dimensions
• UL Classified for windstorm rated assemblies - R37965
• UL10C Listed (3 hour)

Model: Ives 5BB1HW 5.0X4.5 652, 5BB1HW 5.0X4.5 630, 5BB1HW 5.0X4.5 626, 5BB1HW 5.0X4.5 F-BLK
