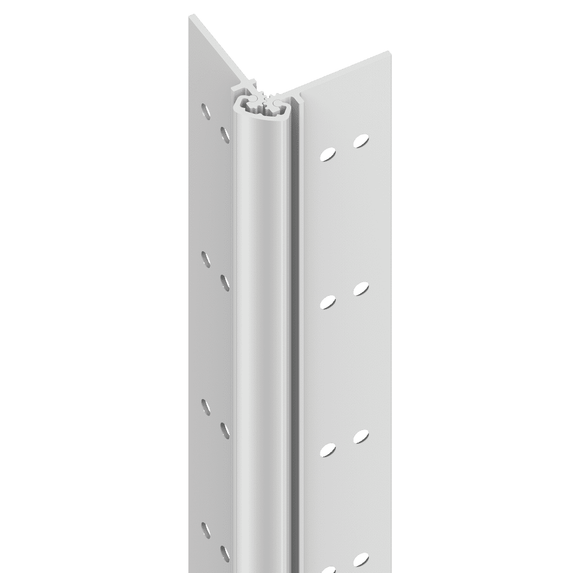

Ives 112XY 95 Full Mortise Aluminum Geared Continuous Hinge, 95", Center Loaded, Narrow Frame and Door Leaf

Ives 112XY 95 Aluminum Continuous Gear Hinge, Full Mortise, Center Loaded, Narrow Frame Leaf, Narrow Door Leaf, No Inset, 95"

Full mortise - narrow frame and door leaf

• For 1-3/4" doors
• Patented center loaded, interlocking bearing design
• Non-handed for custom cut lengths
• Flush mounted, no inset
• 48" Maximum door width
• Beveled or square edge doors
• Frame guidance lip is extended further for retrofit applications to cover existing heavy weight architectural hinge preps
• For doors weighing up to 450 pounds without reinforcing, 600 pounds with reinforcing

Specifications
Standard length: 95"

Standard mounting hardware: 12-24 x 3⁄4" Steel self drilling/self tapping Phillips-head screw

Certifications: Exceeds Grade 1 ANSI/BHMA 156.26 for 150lbs and 300lbs. UL10C listed (90 min)

Clearance Requirements
Model: 112XY
Single door
Hinge-side clearance: 5/16"
Lock-side clearance: 1/8"
Frame irregularity: 1/32"
Beveled door clearance: 1/32"
Door under-sizing (Square edged): 15/32"
Door under-sizing Beveled edged): 1/2"

Pair of doors
Hinge-side clearance (2 doors): 5/8"
Lock-side clearance: 3/16"
Frame irregularity (2 doors): 1/16"
Beveled door clearance (2 doors): 1/16"
Door under-sizing (Square edged total): 7/8"
Door under-sizing (Square edged each door): 7/16"
Door under-sizing (Beveled edged total): 5/16"
Door under-sizing (Beveled edged each door): 15/32"

Model: Ives 112XY 95 US28, 112XY 95 313AN, 112XY 95 315AN
