HES Folger Adam 310-6-2 Electric Strike For Concealed Vertical Rod Panic Devices - 5" CTC

Folger Adam 310-6-2 Electric Strike, Works with concealed vertical rod exit devices, PK Keeper, 5" CTC

Application
310-6-2

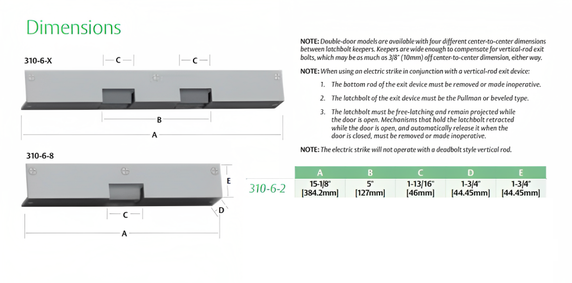

For both leaves of a pair of doors when spacing of the vertical rods is between 4-5/8" [117.475mm] and 5-3/8" [136.525mm]
PK keeper standard

Keeper Style
(PK) For use with 3/4" Pullman style latchbolts

The 310-6-X vertical mounted series is designed for heavy duty applications on single or double doors. The all stainless steel construction of this device makes it ideal for high abuse applications. This line of electric strikes will accommodate rim exit devices with a swinging Pullman style latchbolt.

Standard Features
• Tamper resistant, heavy duty construction
• Constructed entirely of stainless steel for strength and corrosion resistance
• Static strength 1,500 lbs
• Dynamic strength 70 ft-lbs
• Endurance 1 million cycles
• Adjustable keeper allows for door and frame misalignment
• Non-handed
• Fail secure (standard)
• Plug-in connector
• SecuriCare five-year, no-fault, no questions asked warranty (Addition of SMART Pac® III extends the warranty to 10 years)

Optional Features
• Fail Safe
• LCBMA Latchbolt & Locking Cam Monitor with Auxiliary Switch

Certifications
• UL 1034, burglary-resistant listed
• UL 294 listed
• ANSI/BHMA A156.31, Grade 1
• RoHS compliant

Electrical (DC Continuous Duty)
• 510 mA at 12 VDC/250 mA at 24 VDC

Model: HES 310-6-1 12D 627, 310-6-1 24D 627, 310-6-2 12D 627, 310-6-2 24D 627, 310-6-3 12D 627, 310-6-3 24D 627, 310-6-30 12D 627, 310-6-30 24D 627
