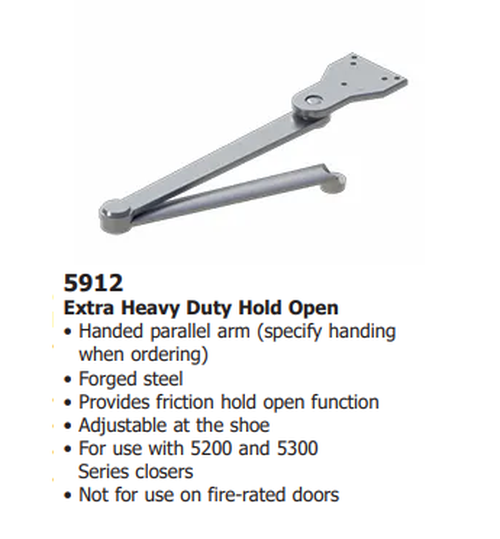

Hager 5200-PAR HDHO ALM Surface Closer w/ Extra Heavy Duty Hold Open Arm, Aluminum Finish

Hager 5200-PAR HDHO ALM Grade 1 Surface Closer, Push or Pull Side Parallel Arm Mounting, Extra Heavy Duty Hold Open Arm, Size 1 to 6 Adjustable, Aluminum Finish

5200 Series Closers are engineered and designed to offer the ideal combination of appearance and reliability. The 5200 Series Closers are constructed of aluminum alloy to be installed on exterior and interior doors. They are designed and engineered for reliability and superior performance. The commercial applications ideal for these closers include schools, medical facilities, institutions, and hospitals as well as office buildings and any entrance door with high foot traffic.

5200 Series Closers have a full rack and pinion operation, with a heat treated steel piston and triple heat treated steel spindle. The closers are non-handed to permit installation on doors of either hand. The sizing is adjustable from size 1 through size 6. These design features make this closer the ideal choice for doors with a maximum weight of 250 lbs.

Features
• Ideal for schools, hospitals, and other high-use environments
• Standard package contains 5201 closer body, 5202 closer cover, 5203 main arm assembly, 5204 standard screw pack, 5900 parallel arm bracket, and 5902 SNB screw pack for 1-3/4” (44 mm) doors

Cover: Full plastic cover - Standard

Closer Body
• Aluminum alloy
• The recommended temperature for prolonged use is between -40º F (-42º C) & 150º F (66º C)

Springs: Double heat treated steel, tempered springs

Valves
• Adjustable latching and sweep speed valves
• Adjustable backcheck valve - Standard
• Delayed action valve - Optional
• Staked valves - Standard

Handing: Non-handed

Arms and Brackets
• Tri-Pack: Regular, Parallel Arm, and Top Jamb Mount - Standard
• 15% power adjustment in standard arm for regular and top jamb mount

Specifications
Door Thickness: 1-3/4” (44 mm) - Standard

Fasteners
• Self-reaming, self-tapping wood and machine screws
• Sex nuts and bolts

Finishes: ALM, BLK, BRZ, DBZ, Rust inhibiting primer - Standard

Certification
• BHMA Certified ANSI A156.4, adjustable sizes 1 to 6
• ADA Compliant ANSI A117.1 Accessibility Code
• UL/cUL listed for up to 3 hours
• UL10C Positive Pressure Rated
• UL10B Neutral Pressure Rated

Warranty: Lifetime warranty

Model: Hager 5200-PAR HDHO ALM RH, 5200-PAR HDHO ALM LH
