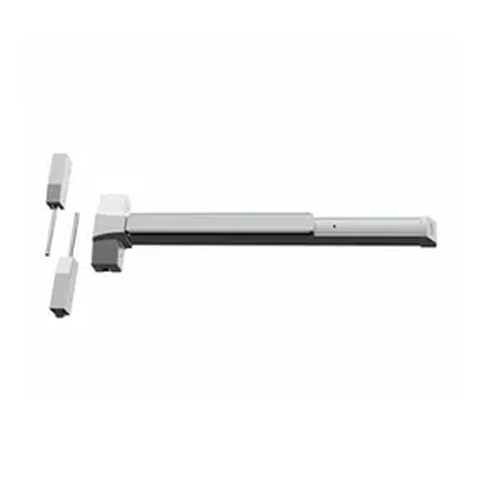

Hager 4501 SVR 36X84 US26D 36" Surface Vertical Rod Exit Bar, Exit Only, Satin Chrome Finish

Hager 4501 SVR 36X84 US26D Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Device, Exit Only, Less Trim, Hex Key Dogging, Satin Chrome Finish, Non-Handed

Hager 4500 Series Exit Devices are ideal for use in heavy duty commercial applications including office buildings, medical facilities, schools, and hospitality structures. The Hager 4500 Series is designed and engineered to provide a lifetime of superior performance on doors in heavy duty commercial applications. Properly applied and maintained Hager 4500 Series Exit Devices and Trim are backed by a lifetime warranty, providing peace of mind from distributor to building owner.

Hager 4500 Series Exit Devices are BHMA certified Grade 1 and meet Life Safety codes and Fire Safety requirements. The 4500 Series Rim and Surface Vertical Rod devices meet ANSI requirements to be listed as Severe Windstorm Components and are approved for High Velocity Hurricane Zone areas.

Features
Covers: Stainless steel, zinc

Cover Tube: Aluminum

Dogging:
• Hex key dogging standard on panic-rated devices
• Cylinder dogging available on panic-rated devices, specify CD (3902 mortise cylinder with standard cam sold separately. Cylinder Length of 1-1/8" (29mm) - 1-3/8" (35mm) is required.)

End Caps: Zinc

Fasteners:
• Wood and machine screws
• Thru-bolts supplied standard

Latchbolt
• Top - 1/2” (13 mm) throw, pullman type with automatic dead-latching, stainless steel
• Bottom - 1/2” (13 mm) throw, pullman type, held retracted during door swing, stainless steel

Strikes
• Stainless steel with stainless steel pin and rollers - included standard with panic device
• Solid stainless steel - included standard with fire-rated device
• Top strike mortised into frame
• Double door strike for use with CVR and RIM device available

Specifications
Door Thickness: 1-3/4” (44 mm) - Standard up to 3”, except with night latch (NL) function which is 2-1/2”

Door Width
• 36’’ (914 mm) field sizeable to 30’’ (762 mm) panic-rated door and 28” (711 mm) fire-rated door
• 48’’ (1219 mm) field sizeable to 36’’ (914 mm) panic- or fire-rated door

Projection
• 3” (76 mm) in undogged position
• 2-5/8” (67 mm) in dogged position

Stile Width
• 4” (102 mm) minimum stile width required
• All stile widths are measured from door edge

Vertical Rods
• Rods for 7’ (2134 mm) doors - 33-1/4” (845 mm) top rod length
• Rods for 8’ (2438 mm) doors - 45-1/4” (1149 mm) top rod length
• Extension rods kits available, 2’ (610 mm) or 3’ (914 mm) for doors over 7’

Finishes: US3, US4, US10B, US26, US26D, US32D, BLK

Certifications: BHMA Certified Grade 1 and meets life safety codes and fire-safety requirements.

Warranty: Lifetime warranty

Notes
• Center line prep is 40”. If door prep elevation is lower, a longer top rod will need to be ordered.
• Recommended for use on appropriately reinforced doors

Model: Hager 4501 SVR 36X84 US26D
