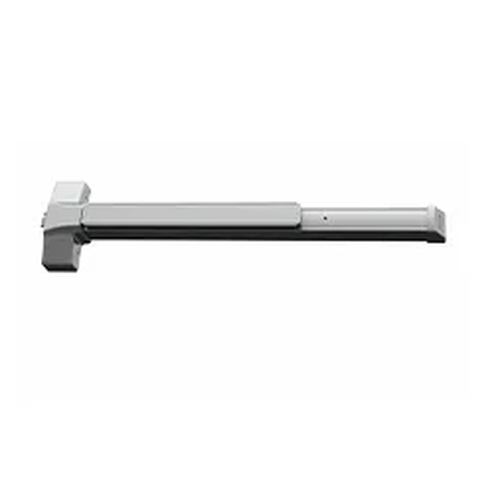

Hager 4501 RIM Grade 1 Rim Exit Bar, Exit Only

Hager 4501 RIM Grade 1 Rim Exit Bar, Wide Stile Pushpad, Exit Only, Less Trim, Hex Key Dogging, Non-Handed

Hager 4500 Series Exit Devices are ideal for use in heavy duty commercial applications including office buildings, medical
facilities, schools, and hospitality structures. The Hager 4500 Series is designed and engineered to provide a lifetime of
superior performance on doors in heavy duty commercial applications. Properly applied and maintained Hager 4500 Series
Exit Devices and Trim are backed by a lifetime warranty, providing peace of mind from distributor to building owner.

Hager 4500 Series Exit Devices are BHMA certified Grade 1 and meet Life Safety codes and Fire Safety requirements.
The 4500 Series Rim and Surface Vertical Rod devices meet ANSI requirements to be listed as Severe Windstorm
Components and are approved for High Velocity Hurricane Zone areas.

Features
Covers: Stainless steel, zinc

Cover Tube: Aluminum

Dogging: Hex key dogging standard on panic-rated devices

End Caps: Zinc

Fasteners:
• Wood and machine screws
• Thru-bolts supplied standard

Latchbolt: 3/4” (19 mm) throw, pullman type with automatic dead-latching, stainless steel

Strikes
• Stainless steel with stainless steel pin and rollers - included standard with panic device
• Solid stainless steel - included standard with fire-rated device
• Top strike mortised into frame
• Double door strike for use with CVR and RIM device available

Specifications
Door Thickness: 1-3/4” (44 mm) - Standard up to 3”, except with night latch (NL) which is 2-1/2”

Door Width
• 36’’ (914 mm) field sizeable to 30’’ (762 mm) panic-rated door and 28” (711 mm) fire-rated door
• 48’’ (1219 mm) field sizeable to 36’’ (914 mm) panic- or fire-rated door

Projection
• 3” (76 mm) in undogged position
• 2-5/8” (67 mm) in dogged position

Stile Width
• 5-3/8” (137 mm) - minimum stile width required for single door and 5/8” (16 mm) stop
• 4-7/8” (124 mm) - minimum stile width required for double door x surface vertical rod with double door strike
• 5-3/4” (146 mm) - minimum stile width required for double doors with 2” (51 mm) mullion
• 5" (127mm) - minimum stile width required for double doors with a middle rail and a 2" mullion
• All stile widths are measured from door edge

Finishes: US3, US4, US10B, US26, US26D, US32D, BLK

Certifications: BHMA Certified Grade 1 and meets life safety codes and fire-safety requirements.

Warranty: Lifetime warranty

Model: Hager 4501 RIM 36 US26D, 4501 RIM 48 US26D, 4501 RIM 36 US32D, 4501 RIM 48 US32D, 4501 RIM 36 US26, 4501 RIM 48 US26
