Hager 3553 ARC Grade 2 Entry Lever Set

Hager 3500 Series Entry Lever Grade 2 Cylindrical Archer Entry Lever

PRODUCT SPECIFICATIONS

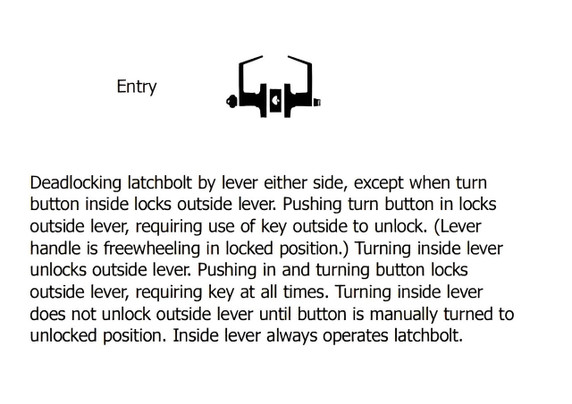

Functions: Entry (F109)
Deadlocking latchbolt by lever either side, except when turn button inside locks outside lever.
Pushing turn button in locks outside lever, requiring use of key outside to unlock (lever handle is freewheeling in locked position).
Turning inside lever unlocks outside lever.
Pushing in and turning button locks outside lever, requiring key at all times.
Turning inside lever does not unlock outside lever until button is manually turned to unlocked position.
Inside lever always operates latchbolt.

ANSI Function: F109

Lever Style: ARC - Archer

Cylinder
Brass 6-pin, keyed different - Schlage C Keyway - Standard
Cylinder drilled 6-pin, Keyed 5-pin - Standard

Backsets: 2-3/4" (70mm) Standard - 2-3/8" (60mm) - Optional

Door Thickness: 1-3/8" - 2" (35 mm - 51 mm)

Exposed Trim: Wrought brass, bronze, and stainless steel Lever is zinc based, plated to match BHMA symbols

Features: No exposed mounting screws, Non-handed

Finishes: US3, US4, US10B, US26, US26D Anti-Microbial Coating (US26D finish only)

Latchbolt Type: 1/2" (13 mm) throw, stainless steel 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate Square corner faceplates standard, round corner available

Lock Chassis: Heavy gauge steel, zinc dichromated for corrosion resistance. Thrupost mounted.

Rose Diameter: 3-17/32" (90 mm)

Standard Door Prep: 2-1/8" (54 mm) diameter with thru-bolt holes (cross bore) Latch hole - 1" (25 mm) diameter (edge bore)

Warranty: Lifetime Warranty on Mechanical Locking Components; 1 Year Warranty on Electric Components.

Certifications:
ADA Compliant ANSI A117.1 Accessibility Code UL/cUL Listed for all functions up to 3 hours "A" label single doors
UL10C Positive Pressure Rated BHMA Certified ANSI A156.2, Series 4000, Grade 1 ANSI A250.13 Severe Windstorm Compliant
Miami Dade County, FL NOA #22-0816.08

Model: Hager 3553 ARC 26D, 3553 ARC 10B
