Hager 3470 WTN Grade 1 Classroom Cylindrical Lock w/ Withnell Lever

Hager 3470 WTN Grade 1 Classroom Cylindrical Lock, Conventional Cylinder, Withnell Lever with Rose

Functions: Classroom (F84)
Deadlocking latchbolt operated by lever from either side except when outside lever is locked from outside by key.
When outside lever is locked, latchbolt is operated by inside lever.

Features
• Heavy duty commercial, industrial, institutional
• No exposed mounting screws
• Non-handed

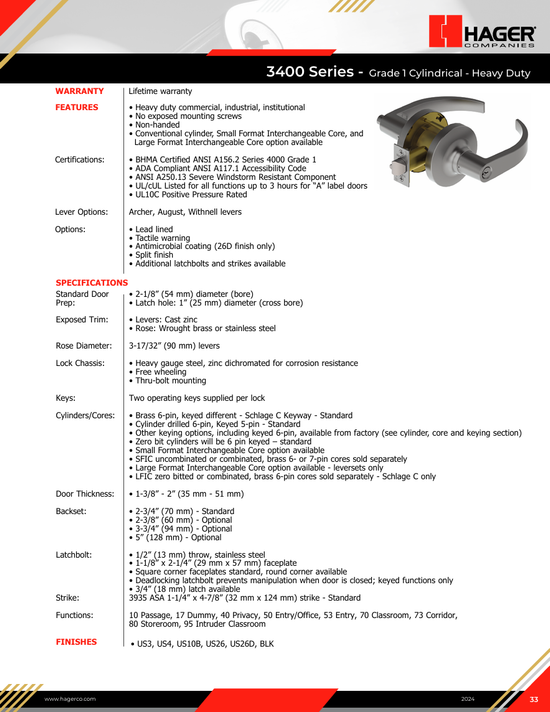

Specification
Lever Style: WTN - Withnell

Standard Door Prep
• 2-1/8” (54 mm) diameter (bore)
• Latch hole: 1” (25 mm) diameter (cross bore)

Exposed Trim
• Levers: Cast zinc
• Rose: Wrought brass or stainless steel

Rose Diameter: 3-17/32” (90 mm) levers

Lock Chassis
• Heavy gauge steel, zinc dichromated for corrosion resistance
• Free wheeling
• Thru-bolt mounting

Keys: Two operating keys supplied per lock

Cylinders
• Brass 6-pin, keyed different - Schlage C Keyway - Standard
• Cylinder drilled 6-pin, Keyed 5-pin - Standard
• SFIC and LFIC options available

Door Thickness: 1-3/8” - 2” (35 mm - 51 mm)

Backset
• 2-3/4” (70 mm) - Standard
• 2-3/8” (60 mm) - Optional

Latchbolt
• 1/2” (13 mm) throw, stainless steel
• 1-1/8” x 2-1/4” (29 mm x 57 mm) faceplate
• Square corner faceplates standard, round corner available
• Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only
• 3/4” (18 mm) latch available
3935 ASA 1-1/4” x 4-7/8” (32 mm x 124 mm) strike - Standard

Finishes: US3, US4, US10B, US26, US26D, BLK

Warranty: Lifetime warranty

Certifications
• BHMA Certified ANSI A156.2 Series 4000 Grade 1
• ADA Compliant ANSI A117.1 Accessibility Code
• ANSI A250.13 Severe Windstorm Resistant Component
• UL/cUL Listed for all functions up to 3 hours for “A” label doors
• UL10C Positive Pressure Rated

Model: Hager 3470 26D WTN, 3470 10B WTN
