Hager 3450 26D WTN Grade 1 Entry/Office Cylindrical Lock w/ Withnell Lever, Satin Chrome Finish

Hager 3450 26D WTN Grade 1 Entry/Office Cylindrical Lock, Conventional Cylinder, Withnell Lever with Rose, Satin Chrome Finish

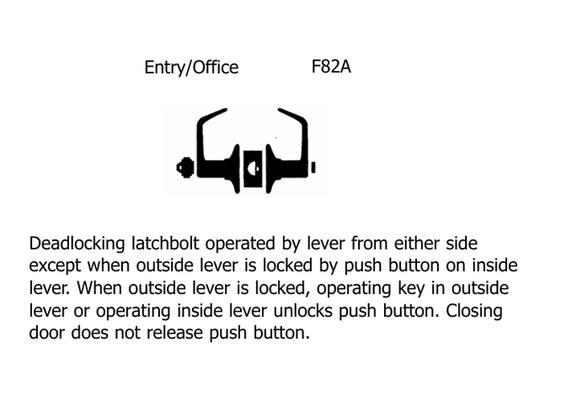

Function: Entry/Office - ANSI F82A
•  Deadlocking latchbolt operated by lever from either side except when outside lever is locked by push button on inside lever
• When outside lever is locked, operating key in outside lever or operating inside lever unlocks push button.
• Closing door does not release push button.

Features
• Heavy duty commercial, industrial, institutional
• No exposed mounting screws
• Non-handed

Specification
Lever Style: WTN - Withnell

Standard Door Prep
• 2-1/8” (54 mm) diameter (bore)
• Latch hole: 1” (25 mm) diameter (cross bore)

Exposed Trim
• Levers: Cast zinc
• Rose: Wrought brass or stainless steel

Rose Diameter: 3-17/32” (90 mm) levers

Lock Chassis
• Heavy gauge steel, zinc dichromated for corrosion resistance
• Free wheeling
• Thru-bolt mounting

Keys: Two operating keys supplied per lock

Cylinders
• Brass 6-pin, keyed different - Schlage C Keyway - Standard
• Cylinder drilled 6-pin, Keyed 5-pin - Standard

Door Thickness: 1-3/8” - 2” (35 mm - 51 mm)

Backset
• 2-3/4” (70 mm) - Standard
• 2-3/8” (60 mm) - Optional

Latchbolt
• 1/2” (13 mm) throw, stainless steel
• 1-1/8” x 2-1/4” (29 mm x 57 mm) faceplate
• Square corner faceplates standard, round corner available
• Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only
• 3/4” (18 mm) latch available
3935 ASA 1-1/4” x 4-7/8” (32 mm x 124 mm) strike - Standard

Finishes: US3, US4, US10B, US26, US26D, BLK

Warranty: Lifetime warranty

Certifications
• BHMA Certified ANSI A156.2 Series 4000 Grade 1
• ADA Compliant ANSI A117.1 Accessibility Code
• ANSI A250.13 Severe Windstorm Resistant Component
• UL/cUL Listed for all functions up to 3 hours for “A” label doors
• UL10C Positive Pressure Rated

Model: Hager 3450 26D WTN
