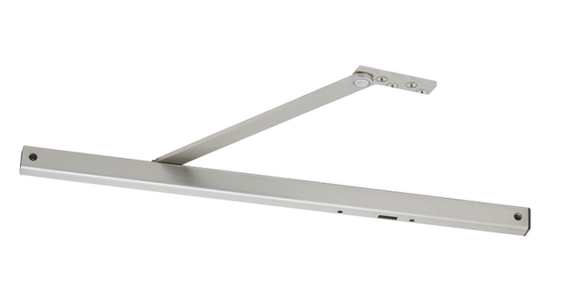

Glynn-Johnson 903H Heavy Duty Surface Overhead Hold Open, Size 3

Glynn-Johnson 903H Heavy Duty Surface Overhead Hold Open, Size 3

90 Series heavy-duty
Glynn-Johnson 90 Series holders and stops are the most rugged models available for heavy-duty applications. The channel is surface-mounted to the door, most often with sex bolts, and the jamb bracket is surface mounted to the jamb,requiring minimal door and frame preparation.

These versatile units can be used in conjunction with most surface-applied door closers. The provided templates allow for variable mounting positions, ranging from 85° to 110° holdopen/stop angle. These templates are designed for installation in almost all types of doors, including doors with conventional butt-type hinges or specialty hinges.

Size: 3

Butt/Offset Pivots: 27 1⁄16" - 33"

Center Hung: 33 1⁄16" - 39"

• Simple
• Standardized
• Each model is available in five sizes

Unmatched convenience:
• Non-handed
• Improved compatibility with door closers
• Single-acting doors
• Interior/exterior applications
• Durable
• Easy to install
• Improved corrosion resistance
• Function conversion kits available

Materials
In 300 Series stainless steel, brass and steel substrates, these models are available in the largest selection of finishes in the industry. Stainless steel models offer the highest resistance to corrosion.

90H Series hold-open
Hold-open models provide a convenient method of holding the door open at a predetermined position for short or long periods of time, permitting an unobstructed traffic flow through the opening. The hold-open function can easily be turned on or off by simply rotating the serrated knob on the bottom of the channel. This knob engages the hold-open mechanism, allowing the door to be held open at a predetermined position ranging from 85° to 110°. When the knob is flipped over, it acts as a stop and shock absorber.

The tension on the hold-open mechanism can be adjusted using a phillips screwdriver to offset air currents or other exterior conditions. The hold-open tension adjustment is located on the top of the slider in the channel.

Finishes: SP28 - Aluminum Painted, US26D - Satin Chrome, US32D - Satin Stainless Steel, US10 - Satin Bronze, US3 - Bright Brass, SP10 - Light Bronze Painted, SP313 - Dark Bronze Painted

Model: Glynn Johnson 903H SP28, 903H US26D
