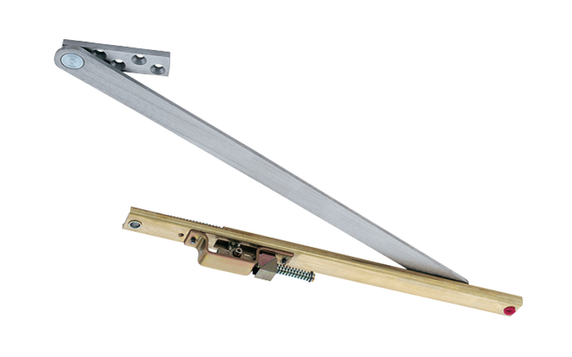

Glynn-Johnson 103H Heavy Duty Concealed Overhead Hold Open, Size 3

Glynn-Johnson 103H Heavy Duty Concealed Overhead Hold Open, Size 3

100 Series heavy-duty
Glynn-Johnson offers a complete line of overhead door holders and stops, accommodating virtually all openings with solutions for even the most complex door control problems. These concealed holders and stops provide the most attractive and reliable heavy-duty door control available.

Glynn-Johnson 100 Series holders and stops provide the most reliable and versatile concealed overhead door control. They are designed for installation on virtually all types of doors mounted on conventional type butt hinges, pivots, continuous
hinges, swing clear hinges and numerous other specialty hinges. When used in conjunction with many surface-applied door closers, 100 Series holders and stops provide the most effective control for entrance doors and vestibule doors of all types, as well as heavy or often used interior doors. Templates provided allow for variable mounting positions, ranging from 85° - 110° of opening.

Size: 3

Butt/Offset Pivots: 27 1⁄16" - 33"

Center Hung: 33 1⁄16" - 39"

• Simple
• Standardized
• Each model is available in six sizes

Unmatched convenience:
• Non-handed
• Improved compatibility with door closers
• Single/double-acting doors
• Interior/exterior applications
• Durable
• Reduced door prep
• Improved corrosion resistance
• Function conversion kits available

Materials
In heavy gauge brass or 300 Series stainless steel, these models offer the broadest range of finishes in the industry, complementing any design and offering the highest resistance to corrosion.

100H Series hold-open
The hold-open function should be used where it is desired to hold a door open at a predetermined position for short or long periods of time, permitting an unobstructed traffic flow through the opening.

These models are both selective and adjustable, featuring the most reliable hold-open mechanism available. They feature a control knob which protrudes from the face of the door and turns the hold-open function on or off. Set in the inactive position, the unit acts as a stop and shock absorber. The tension on the hold-open mechanism can be adjusted using an allen wrench to offset air currents or other exterior conditions. The hold-open tension adjustment is located in the bottom of the track in the top of the door.

Finishes: SP28 - Aluminum Painted, US26D - Satin Chrome, US32D - Satin Stainless Steel, US10 - Satin Bronze, US3 - Bright Brass, SP10 - Light Bronze Painted, SP313 - Dark Bronze Painted

Model: Glynn Johnson 103H SP28, 103H US26D, 103H US32D
