Falcon W581 HAN Grade 2 Storeroom Cylindrical Knob Lock w/ Hana Knob Style

Falcon W581 HAN Grade 2 Storeroom Cylindrical Lock, Hana Knob, Standard Rose, Non-handed

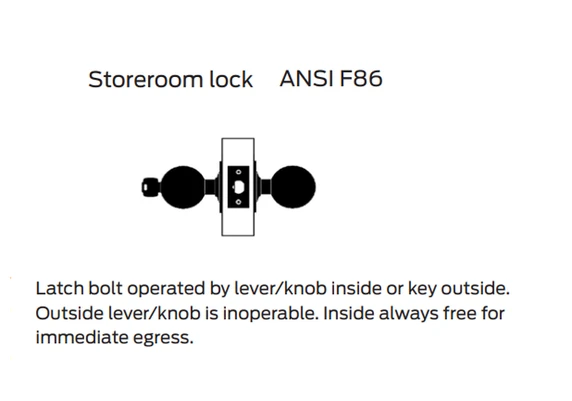

Function: Storeroom- F86
• Latch bolt operated by knob inside or key outside.
• Outside knob is inoperable.
• Inside always free for immediate egress.

Specifications
Rose size: Standard rose diameter 3-3/8".

Knob Style: HAN - Hana Knob

Handing: Locks are non-handed.

Door thickness: 1-3/8" – 1-3/4" standard.

Backset: 2-3/4" (70mm) standard.

Cylinder: Conventional cylinder, drilled with 6-pin chambers, pinned in 5 comes standard. Pinning in 6 chambers available (at no cost) when specified. Optional 7-pin conventional and 6- or 7-pin Small Format Interchangeable Core (SFIC) cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.

Keyways: “G” keyway standard on conventional cylinders. “A” keyway standard on SFIC cylinders.

Mechanism: Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.

Trim: Roses are heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.

Latches: 1/2" bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self adjusting fronts to accommodate beveled or flat doors. Standard rose: 2-3/8" backset with 1" x 2-1/4" latch face or 2-3/4" backset with 1-1/8" x 2-1/4" latch face

Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 standard door frame preparation standard.

Screws: Furnished with combination screws for use in wood or metal doors and frames

Certifications

ANSI/BHMA
Certified ANSI/BHMA A156.2, Series 4000, Grade 2.

UL: Listed for 3-hour fire door, A label.

Model: Falcon W581PD HAN 626, W581PD HAN 605, W581PD HAN 606, W581PD HAN 612, W581PD HAN 613, W581PD HAN 625, W581BD HAN 626, W581BD HAN 605, W581BD HAN 606, W581BD HAN 612, W581BD HAN 613, W581BD HAN 625, W581LD HAN 626, W581LD HAN 605, W581LD HAN 606, W581LD HAN 612, W581LD HAN 613, W581LD HAN 625
