Falcon W561CP6D Q Classroom Cylindrical Lever Lock w/ Schlage C Keyway, Quantum Style

Falcon W561CP6D Q Grade 2 Classroom Cylindrical Lock, Schlage C Keyway, Key in Lever Cylinder, Quantum Lever, Standard Rose, Non-handed

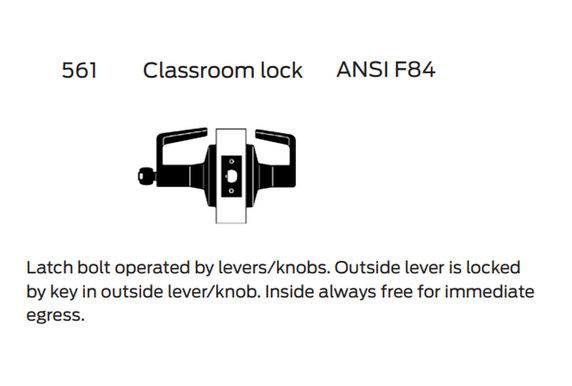

Function: Classroom - ANSI F84
Latch bolt operated by levers/knobs.
Outside lever is locked by key in outside lever/knob.
Inside always free for immediate egress.

Lever Style: Quantum Lever

Series: W - Grade 2, Medium-Duty

ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000, Grade 2.

UL: Listed for 3-hour fire door, A label.

Rose size: Standard rose diameter 3-3/8".

Door thickness: 1-3/8" to 1-3/4" standard.

Backset: Standard rose - 2-3/4" backset.

Mechanism: Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.

Handing: Locks are non-handed.

Cylinder: Conventional cylinder, drilled with 6-pin chambers, pinned in 5 comes standard.

Keyways: Schlage “C” keyway

Trim: Roses are heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted. Levers are pressure cast zinc (solid levers-no-inserts) finished to match mating parts.

Latches: 1/2" bolt projection made of stainless steel and UL listed for 3-hour door assemblies.
Latches have selfadjusting fronts to accommodate beveled or flat doors.
Standard rose: 2-3/8" backset with 1" x 2-1/4" latch face or 2-3/4" backset with 1-1/8" x 2-1/4" latch face.

Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.

Screws: Furnished with combination screws for use in wood or metal doors and frames.

Model: Falcon W561CP6D Q 626, W561CP6D Q 605, W561CP6D Q 606, W561CP6D Q 613, W561CP6D Q 625
