Falcon W511PD Q Entry/office Cylindrical Lever Lock, Quantum Style

Falcon W511PD Q Entry/office Cylindrical Lever Lock
Function Description: Entry/office - ANSI NO.F109
Turn/push button locking: Pushing and turning button locks outside lever/knob
requiring use of key until button is manually unlocked. Push button locking:
Pushing button locks outside lever/knob until unlocked by key or by rotating inside
lever. Inside lever always free for immediate egress. Latch bolt operated by levers/knobs.
Key enables only unlocking from outside

Function note: This lock will stay locked when the door is closed. If you
want your door to unlock when it closes, please purchase the 571 function.

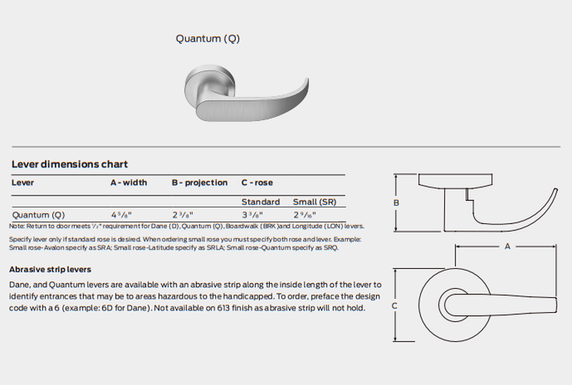

Lever Style: Quantum Lever

Series: W - Grade 2, Medium-Duty

ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000, Grade 2.

UL: Listed for 3-hour fire door, A label.

Rose size: Standard rose diameter 3 3⁄8". Small rose diameter 2 9⁄16".

Door thickness: 1 3⁄8" to 1 3⁄4" standard.

Backset: Standard rose - 2 3⁄4" backset; Small rose - 2 3⁄8" backset.

Mechanism: Parts constructed of brass or cold-formed steel,
zinc plated and dichromated for rust resistance. Springs are stainless steel.

Attachment: Lock chassis secured to door by two screws which pass through
a steel rose insert inside and thread directly into the outer rose-mounting assembly,
and two screws that screw into the chassis assembly.

Handing: Locks are non-handed.

Cylinder: Conventional cylinder, drilled with 6-pin chambers, pinned in 5 comes standard.
Pinning in 6 chambers available (at no cost) when specified. Optional 7-pin conventional and 6- or
7-pin Small Format Interchangeable Core (SFIC) cylinders. Cylinder housings and plugs machined from solid brass.
Springs are phosphor bronze. Two nickel silver keys furnished standard.

Keyways: “G” keyway standard on conventional cylinders. “A” keyway standard on SFIC cylinders.
Additional options: Falcon, Schlage and many Best and Arrow keyways.

Trim: Roses are heavy wrought brass or bronze, installed over steel rose inserts
which are through-bolted. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match
mating parts.

Latches: 1⁄2" bolt projection made of stainless steel and UL listed for 3-hour door assemblies.
Latches have selfadjusting fronts to accommodate beveled or flat doors.
Standard rose: 2 3⁄8" backset with 1" x 21⁄4" latch face or 2 3⁄4" backset with 11⁄8" x 21⁄4" latch face.
Small rose: 2 3⁄4" backset with 1 1⁄8" x 2 1⁄4" latch face.

Strikes: 47⁄8" x 11⁄4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.
Consult Options and Accessories section for other available strikes, sizes and configurations.

Screws: Furnished with combination screws for use in wood
or metal doors and frames.

Model: Falcon W511PD Q 626, W511PD Q 605, W511PD Q 606, W511PD Q 613, W511PD Q 625
