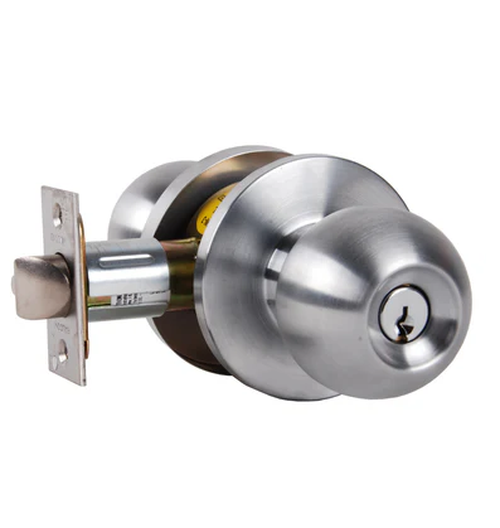

Falcon W511 HAN Grade 2 Entry/Office Cylindrical Knob Lock w/ Hana Knob Style

Falcon W511 HAN Grade 2 Entry/Office Cylindrical Lock, Hana Knob, Standard Rose, Non-handed

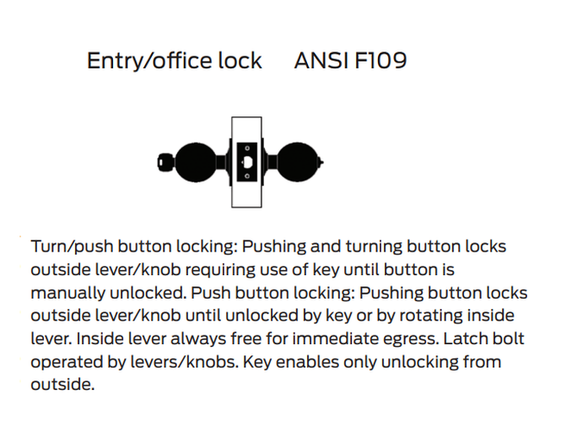

Function: Entry/Office - F109
• Turn/push button locking: Pushing and turning button locks outside knob requiring use of key until button is manually unlocked.
• Push button locking: Pushing button locks outside knob until unlocked by key or by rotating inside knob. Inside knob always free for immediate egress.
• Latch bolt operated by knobs.
• Key enables only unlocking from outside.

Specifications

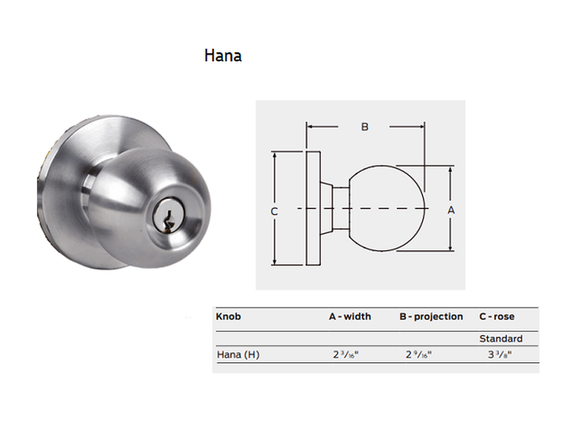

Rose size: Standard rose diameter 3-3/8".

Knob Style: HAN - Hana Knob

Handing: Locks are non-handed.

Door thickness: 1-3/8" – 1-3/4" standard.

Backset: 2-3/4" (70mm) standard.

Cylinder: Conventional cylinder, drilled with 6-pin chambers, pinned in 5 comes standard. Pinning in 6 chambers available (at no cost) when specified. Optional 7-pin conventional and 6- or 7-pin Small Format Interchangeable Core (SFIC) cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.

Keyways: “G” keyway standard on conventional cylinders. “A” keyway standard on SFIC cylinders.

Mechanism: Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.

Trim: Roses are heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.

Latches: 1/2" bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self adjusting fronts to accommodate beveled or flat doors. Standard rose: 2-3/8" backset with 1" x 2-1/4" latch face or 2-3/4" backset with 1-1/8" x 2-1/4" latch face

Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 standard door frame preparation standard.

Screws: Furnished with combination screws for use in wood or metal doors and frames

Certifications

ANSI/BHMA
Certified ANSI/BHMA A156.2, Series 4000, Grade 2.

UL: Listed for 3-hour fire door, A label.

Model: Falcon W511PD HAN 626, W511PD HAN 605, W511PD HAN 606, W511PD HAN 612, W511PD HAN 613, W511PD HAN 625, W511BD HAN 626, W511BD HAN 605, W511BD HAN 606, W511BD HAN 612, W511BD HAN 613, W511BD HAN 625, W511LD HAN 626, W511LD HAN 605, W511LD HAN 606, W511LD HAN 612, W511LD HAN 613, W511LD HAN 625
