Falcon W201D Q Patio Lever Lock

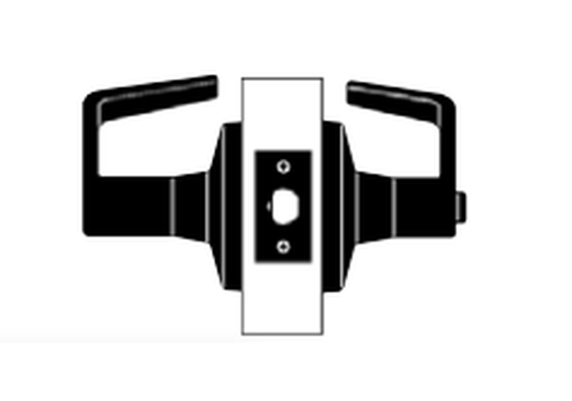

Function Description: Patio lock - ANSI NO.F77
Latch bolt operated by levers. Outside lever is locked by push button from inside.
Rotating inside lever or closing door releases button and unlocks outside lever. Inside
lever always free for immediate egress.
Function note: This lock will stay locked when the door is closed. If you
want your door to unlock when it closes, please purchase the 571 function.

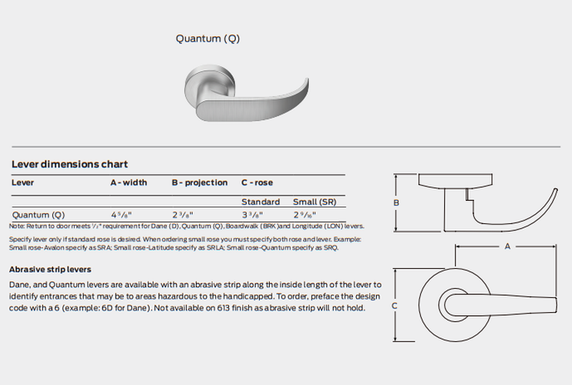

Lever Style: Quantum Lever
Series: W - Grade 2, Medium-Duty
ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000, Grade 2.
UL: Listed for 3-hour fire door, A label.
Rose size: Standard rose diameter 3 3⁄8". Small rose diameter 2 9⁄16".
Door thickness: 1 3⁄8" to 1 3⁄4" standard.
Backset: Standard rose - 2 3⁄4" backset; Small rose - 2 3⁄8" backset.
Mechanism: Parts constructed of brass or cold-formed steel,
zinc plated and dichromated for rust resistance. Springs are stainless steel.
Attachment: Lock chassis secured to door by two screws which pass through
a steel rose insert inside and thread directly into the outer rose-mounting assembly,
and two screws that screw into the chassis assembly.
Handing: Locks are non-handed.
Trim: Roses are heavy wrought brass or bronze, installed over steel rose inserts
which are through-bolted. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match
mating parts.
Latches: 1⁄2" bolt projection made of stainless steel and UL listed for 3-hour door assemblies.
Latches have selfadjusting fronts to accommodate beveled or flat doors.
Standard rose: 2 3⁄8" backset with 1" x 21⁄4" latch face or 2 3⁄4" backset with 11⁄8" x 21⁄4" latch face.
Small rose: 2 3⁄4" backset with 1 1⁄8" x 2 1⁄4" latch face.
Strikes: 47⁄8" x 11⁄4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.
Consult Options and Accessories section for other available strikes, sizes and configurations.
Screws: Furnished with combination screws for use in wood
or metal doors and frames.
Model: W201D Q 626, W201D Q 613
