Falcon W101S ELI Grade 2 Passage Cylindrical Knob Lock w/ Elite Knob Style

Falcon W101S ELI Grade 2 Passage Cylindrical Lock, Non-Keyed, Elite Knob, Standard Rose, Non-handed

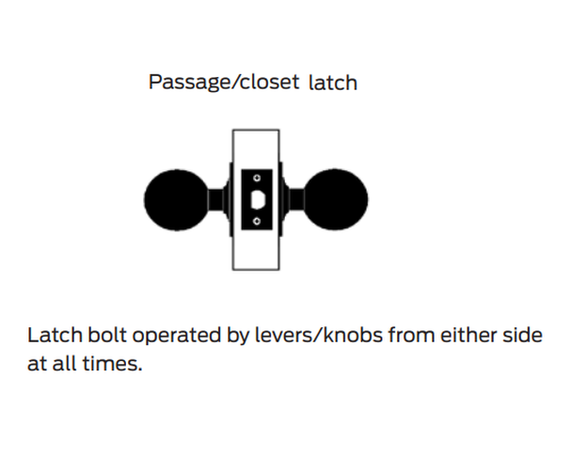

Function: Passage/closet latchset
• Latch bolt operated by knobs from either side at all times.

Specifications
Rose size: Standard rose diameter 3-3/8".

Knob Style: ELI - Elite Knob

Handing: Locks are non-handed.

Door thickness: 1-3/8" – 1-3/4" standard.

Backset: 2-3/4" (70mm) standard.

Mechanism: Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.

Trim: Roses are heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.

Latches: 1/2" bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self adjusting fronts to accommodate beveled or flat doors. Standard rose: 2-3/8" backset with 1" x 2-1/4" latch face or 2-3/4" backset with 1-1/8" x 2-1/4" latch face

Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 standard door frame preparation standard.

Screws: Furnished with combination screws for use in wood or metal doors and frames

Certifications

ANSI/BHMA
Certified ANSI/BHMA A156.2, Series 4000, Grade 2.

UL: Listed for 3-hour fire door, A label.

Model: Falcon W101S ELI 626, W101S ELI 605, W101S ELI 606, W101S ELI 612, W101S ELI 613, W101S ELI 625
