Falcon TM561P QUA Classroom Lever Lock, w/ Conventional Cylinder, Quantum Style

6-7 weeks lead time
$334.67
Price: $670.00
Instant Savings $335.33

FREE SHIPPING

SKU: TM561P QUA 626
Series: TM - Grade 1, Extra Heavy-duty
Function: Classroom
Lever Style: QUA - Quantum Lever
Cylinder: P - 6-pin Conventional "G" Keyway
Choose Options:
Hurry! Only left

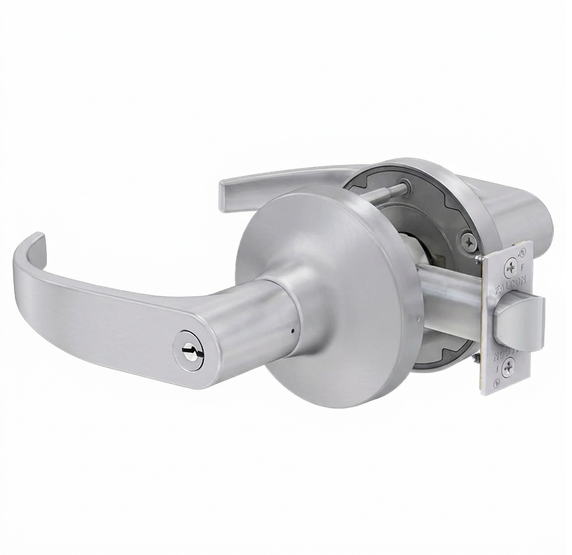

Falcon TM561P QUA Grade 1 Classroom Cylindrical Lock, Key-in-Lever, Quantum Lever, Standard Rose, Non-Handed

Function: Classroom lock - ANSI F84
• Latch bolt retracted by outside lever when unlocked
• Outside lever locked and unlocked by key in outside
• Outside lever clutches when locked
• Inside lever always unlocked for immediate egress
• Deadlocking latch bolt
Not available with L‑SAR, L‑YA6, J‑MED, J‑SAR, J‑YA6, J‑YA7, J‑CO6 cylinder configurations.
Request to Exit (RX) available, assembly required.

Lever Style: Quantum Lever

Series: TM - Grade 1, Extra Heavy-Duty

Specifications
Material: Modular design of zinc and steel components plated for corrosion protection

Door Thickness: 1-3/4" standard

Handing: Non-handed

Rose: Heavy wrought brass, installed over pressure cast rose inserts which are through‑bolted

Backset: Standard: 2-3/4" (70 mm)

Faceplate: Standard: square corner 1-1/8" x 2‑1/4" (29 mm x 57 mm) with retained screws

Latch bolt: Standard: 1" (25mm) housing diameter, 1/2" (13 mm) throw, restoring spring latch or deadlatch with retained screws; stainless steel

Strike: Standard: ANSI curved lip: 1-1/4" x 4-7/8" x 1-3/16" (32 mm x 124 mm x 30 mm) with retained screws; Dust box available (not standard)

Keying
Cylinder format: Standard: Falcon solid brass 6‑pin conventional cylinder (P), keyed 5‑pin, with two nickel silver cut keys

Keyway: Standard: Falcon open "G" keyway, keyed different (KD) with conventional cylinders

Screws: Furnished with combination screws for use in wood or metal doors and frames

Warranty: Limited warranty, 10 years from date of manufacturer; 3 year electrical, 3 year finish

Certification:
ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000, Grade 1 Certified ANSI/BHMA A156.25, Full Indoor Type, Low Voltage Wired

ICC: Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL: UL 10C and CAN/ULC‑S104 listed 3‑hour fire door
‑ A label single doors, 4' x 10' and pairs 8' x 10'
‑ Letter F and UL symbol on latch front indicate listing

CA Fire Code: All levers with a return to door of 1⁄2" (13 mm) or less comply (Boardwalk, Dane, Longitude and Quantum)

FL Building Code: Complies with Florida Building Code requirements for hurricanes

Federal: Meets FF‑H‑106C Series 161

Model: Falcon TM561P QUA 626, TM561P QUA 643E, TM561P QUA 605, TM561P QUA 606, TM561P QUA 619, TM561P QUA 613, TM561P QUA 625, TM561P QUA 622
